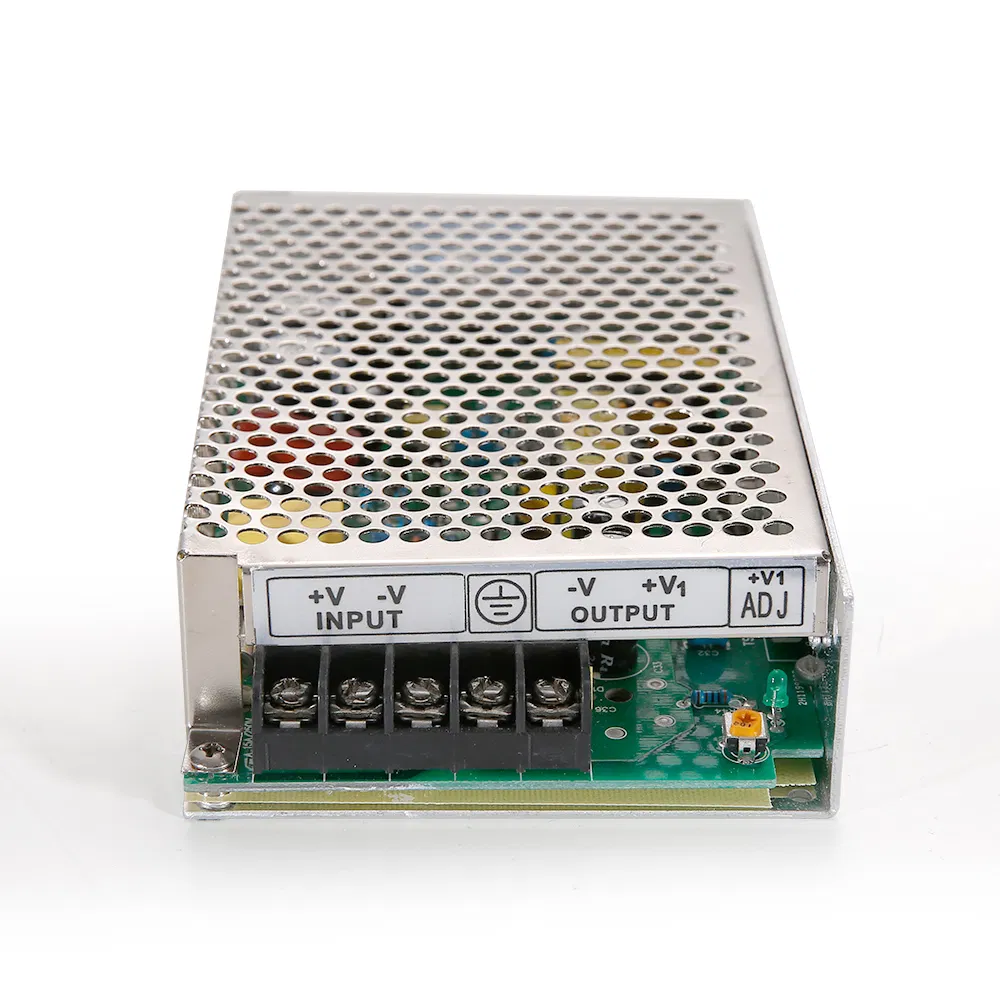

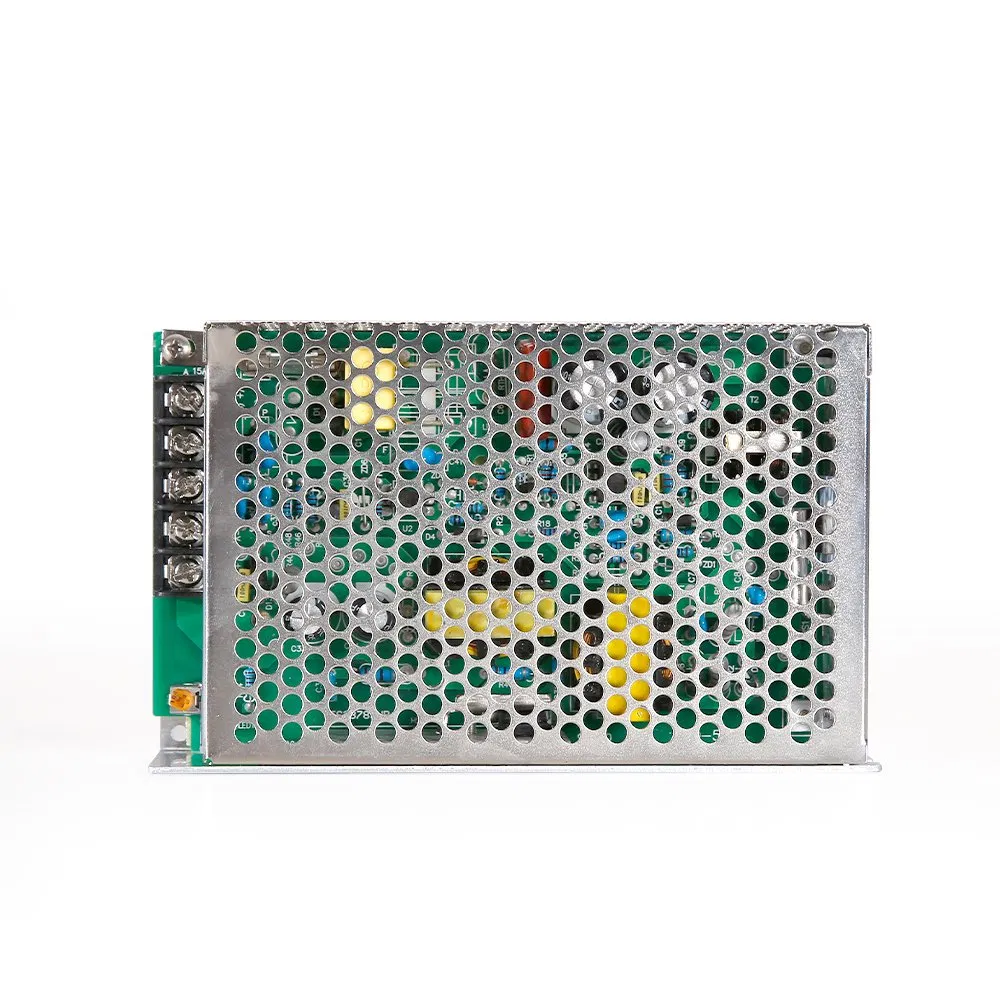

48V to 24V 10A DC DC Step Down Converter with CE Certification

1 / 5

48V to 24V 10A DC DC Step Down Converter with CE Certification

Customization:	Available
Output Type:	Single
Warranty:	2 Years

Send Inquiry

Product Description

🟦 Basic Information

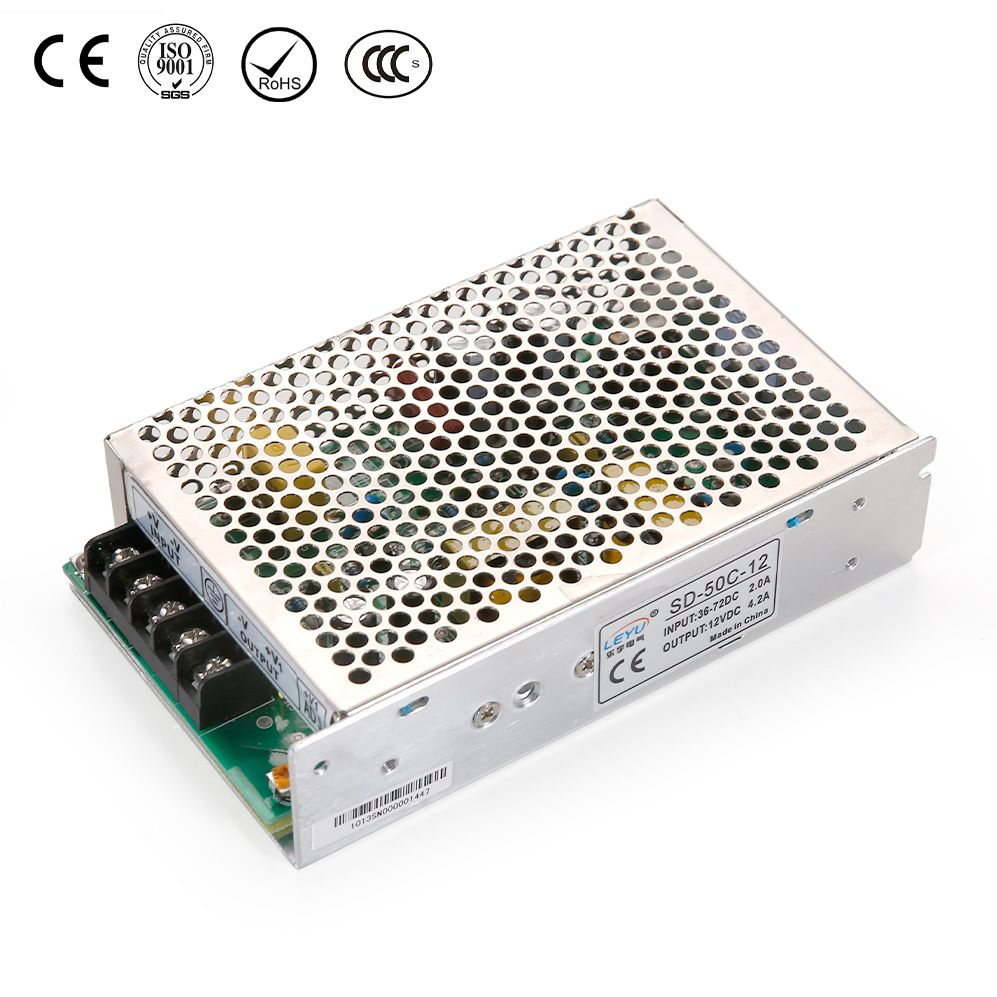

Model NO.	SD-50C-12
Output Power	1 - 50W
Input Voltage	36~72VDC
Modulation System	PWM
Certification	CE, RoHS, ISO
Protections	Short Circuit / Overload / Over Voltage

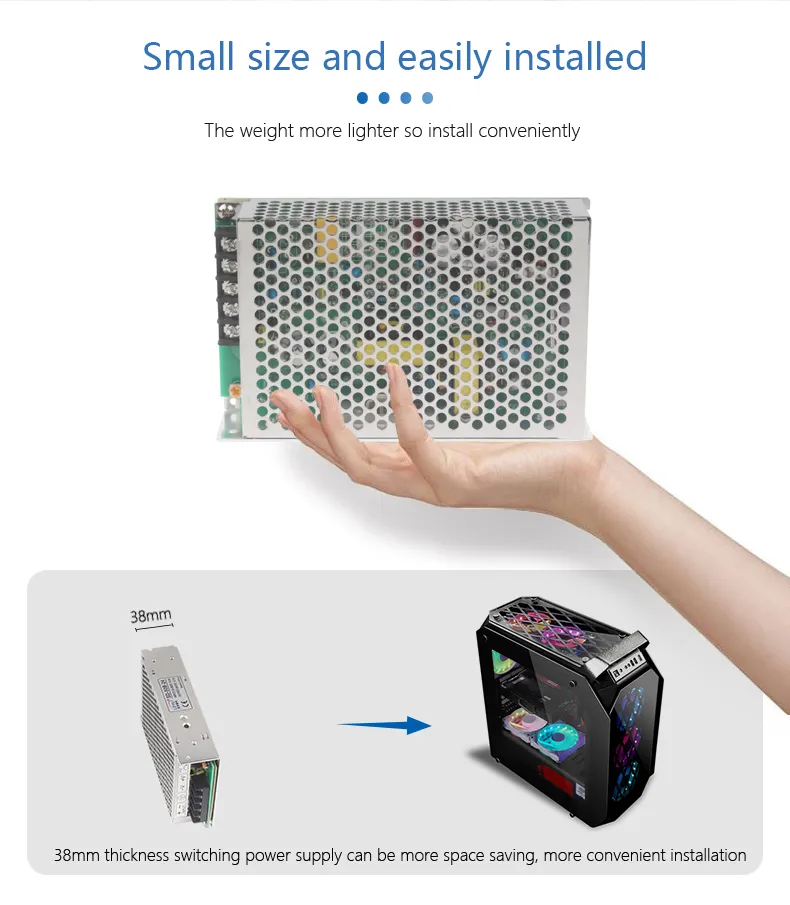

Specification	1599738mm(LWH)

🟦 Features & Overview

50W Single Output DC-DC Converter (SD-50 Series)

🔹 2:1 wide input range
🔹 1500VAC I/O isolation

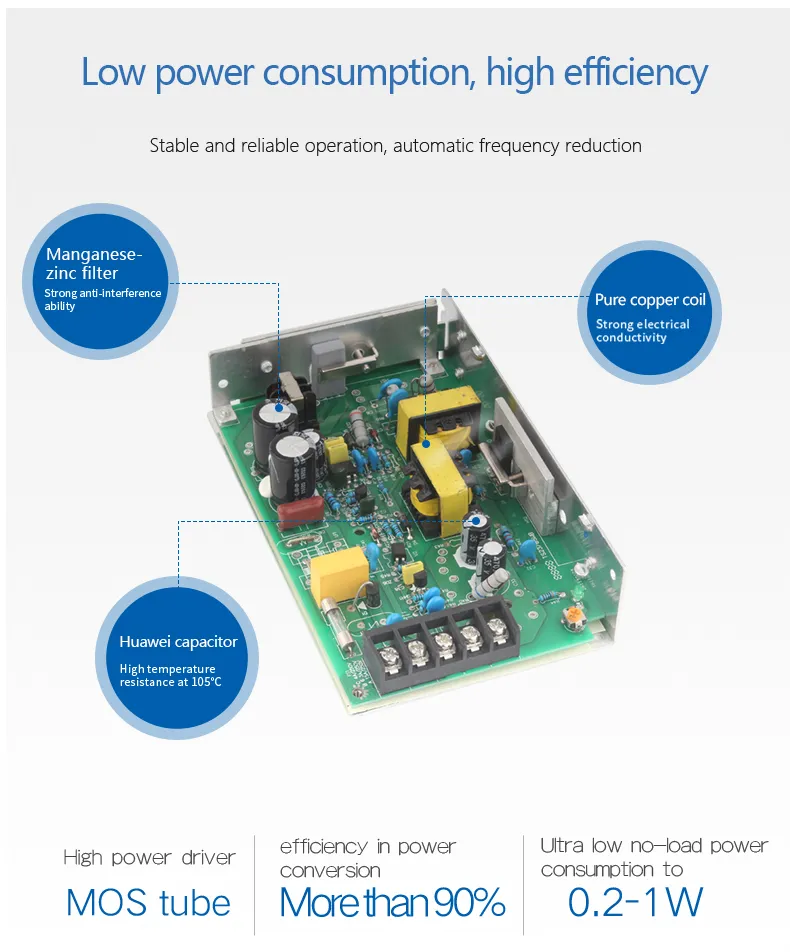

🔹 Built-in EMI filter
🔹 Low ripple noise
🔹 100% full load burn-in test
🔹 Fixed switching frequency at 83 KHz
🔹 High reliability
🔹 2 years warranty

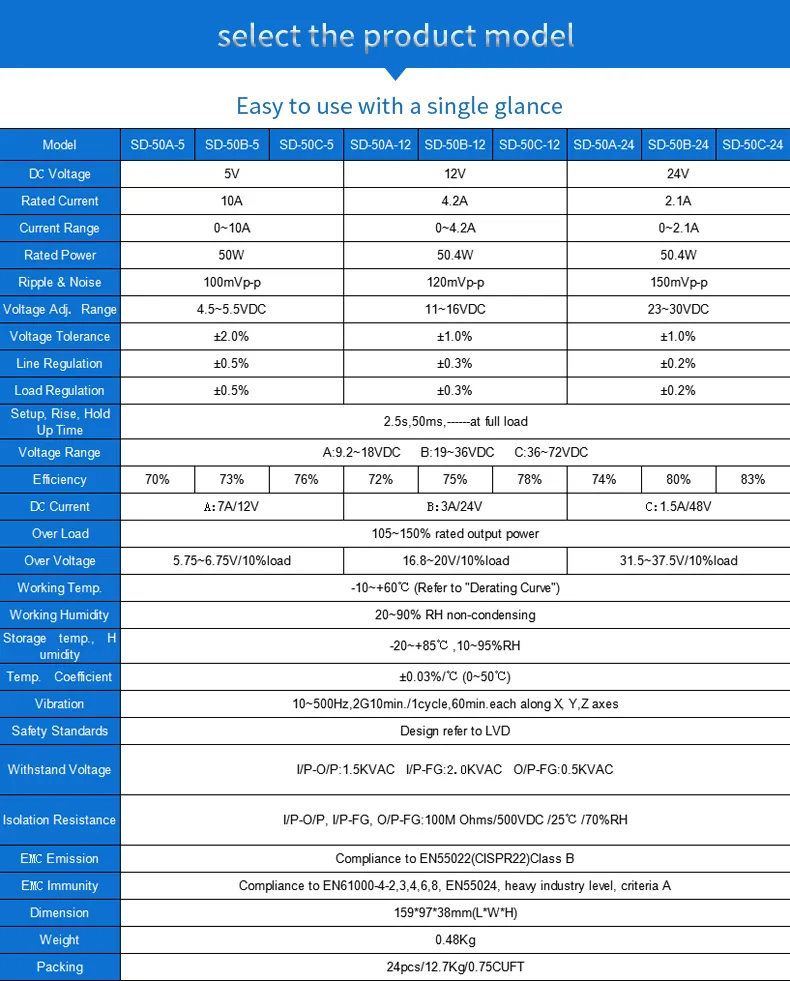

🟦 Product Parameters

Parameter	SD-50A/B/C-5	SD-50A/B/C-12	SD-50A/B/C-24
DC Voltage	5V	12V	24V
Rated Current	10A	4.2A	2.1A
Rated Power	50W	50.4W	50.4W
Voltage Adj. Range	4.5~5.5VDC	11~16VDC	23~30VDC
Voltage Range (Input)	A: 9.2~18VDC \| B: 19~36VDC \| C: 36~72VDC

🟦 Visual Description

❓ Frequently Asked Questions

Q: What is the input range for the SD-50 series? A: It features a wide 2:1 input range categorized into three types: A (9.2~18VDC), B (19~36VDC), and C (36~72VDC).

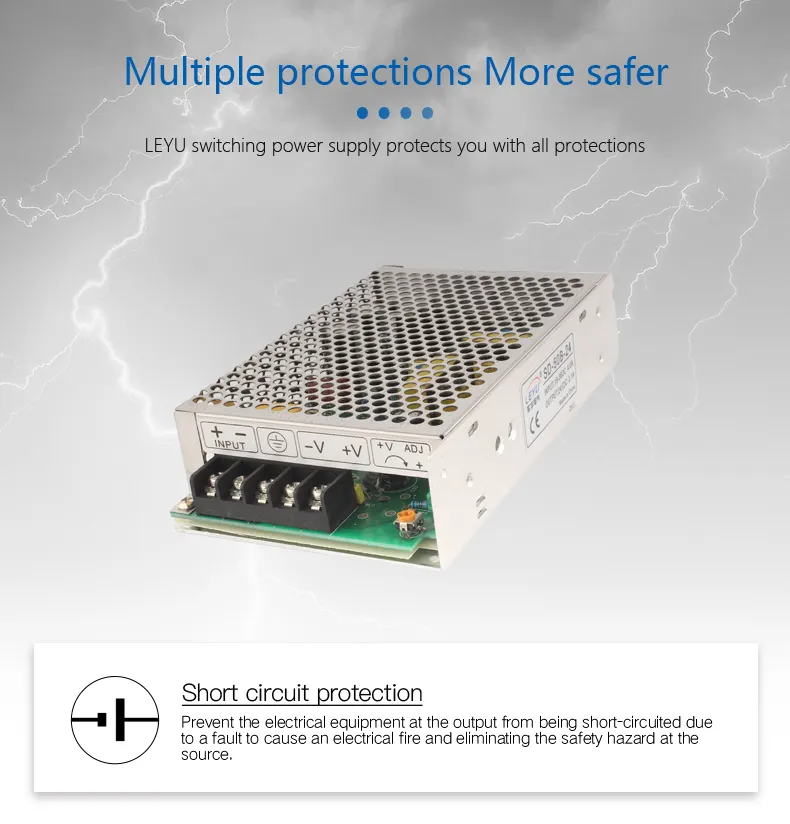

Q: Does this converter include circuit protections? A: Yes, it includes built-in protections for short circuits, overloads, and overvoltage with hiccup mode recovery.

Q: What certifications does the SD-50C-12 have? A: The product is compliant with CE, RoHS, and ISO standards, ensuring safety and quality.

Q: Is the unit tested before shipping? A: Every unit undergoes a 100% full load burn-in test to guarantee high reliability.

Q: What is the warranty period? A: We provide a 2-year warranty for this DC-DC converter series.

Q: Does it have noise filtering? A: Yes, it is designed with a built-in EMI filter to ensure low ripple noise during operation.
