Jjy360100 36V 10A Power Supply AC 100-240 to DC 36 Volt 10 AMP 360W Universal Regulated Power Adapter Switching Converter Transformer for LED Strip Light CCTV
Jjy360100 36V 10A Power Supply AC 100-240 to DC 36 Volt 10 AMP 360W Universal Regulated Power Adapter Switching Converter Transformer for LED Strip Light CCTV
Jjy360100 36V 10A Power Supply AC 100-240 to DC 36 Volt 10 AMP 360W Universal Regulated Power Adapter Switching Converter Transformer for LED Strip Light CCTV
Jjy360100 36V 10A Power Supply AC 100-240 to DC 36 Volt 10 AMP 360W Universal Regulated Power Adapter Switching Converter Transformer for LED Strip Light CCTV
Jjy360100 36V 10A Power Supply AC 100-240 to DC 36 Volt 10 AMP 360W Universal Regulated Power Adapter Switching Converter Transformer for LED Strip Light CCTV
1 / 5
Jjy360100 36V 10A Power Supply AC 100-240 to DC 36 Volt 10 AMP 360W Universal Regulated Power Adapter Switching Converter Transformer for LED Strip Light CCTV
Jjy360100 36V 10A Power Supply AC 100-240 to DC 36 Volt 10 AMP 360W Universal Regulated Power Adapter Switching Converter Transformer for LED Strip Light CCTV
Jjy360100 36V 10A Power Supply AC 100-240 to DC 36 Volt 10 AMP 360W Universal Regulated Power Adapter Switching Converter Transformer for LED Strip Light CCTV
Jjy360100 36V 10A Power Supply AC 100-240 to DC 36 Volt 10 AMP 360W Universal Regulated Power Adapter Switching Converter Transformer for LED Strip Light CCTV
Jjy360100 36V 10A Power Supply AC 100-240 to DC 36 Volt 10 AMP 360W Universal Regulated Power Adapter Switching Converter Transformer for LED Strip Light CCTV

Jjy360100 36V 10A Power Supply AC 100-240 to DC 36 Volt 10 AMP 360W Universal Regulated Power Adapter Switching Converter Transformer for LED Strip Light CCTV

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
JJY360100
Certification
TUV, RoHS, ISO9001, CE FCC Ukca UL Rcm
Output Voltage
36V
Output Current
10A
Power Source
Single End Type
Internal Structure
AC DC
Application
Electronic Products
Warranty
2 Years
Protection
Ovp Ocp Otp SCP
HS Code
8504401400
★

Product Highlights

JJY360100 36V 10A Power Supply is a 360W high-performance universal regulated power adapter switching converter. Designed for stability and reliability, it converts AC 100-240V to DC 36V 10A, making it ideal for high-power applications.

Key Features:

Universal AC input / Full range (up to 264Vac)
Built-in Protection: Short circuit, Overload, and Over temperature
Efficient cooling by free air convection
100% full load burn-in tested for reliability
Fixed switching frequency at 75KHz and 55 KHz
High efficiency and long operational life

Versatile Applications:

LED Strip Lighting systems
CCTV Security Camera power
Precision Electronic Instruments
Power Amplifier Equipment
📋

Technical Parameters

Input Voltage & Freq.100~240VAC & 50-60Hz (90~264VAC Range)
Energy Efficiency85% MIN
Withstanding Voltage1500VAC 1 Minute 10mA Max (Pri. to Sec.)
Output Voltage36VDC
Output Current10A
Output Power360W Max
Ripple & Noise<120mVp-p
Load Regulation±5%
Operating Temp.-10~40ºC
Storage Temp.-20~80ºC
Safety StandardsCE ROHS FCC UKCA
MTBF>100K Hours (Full Load @ 25ºC)
📷

Product Gallery

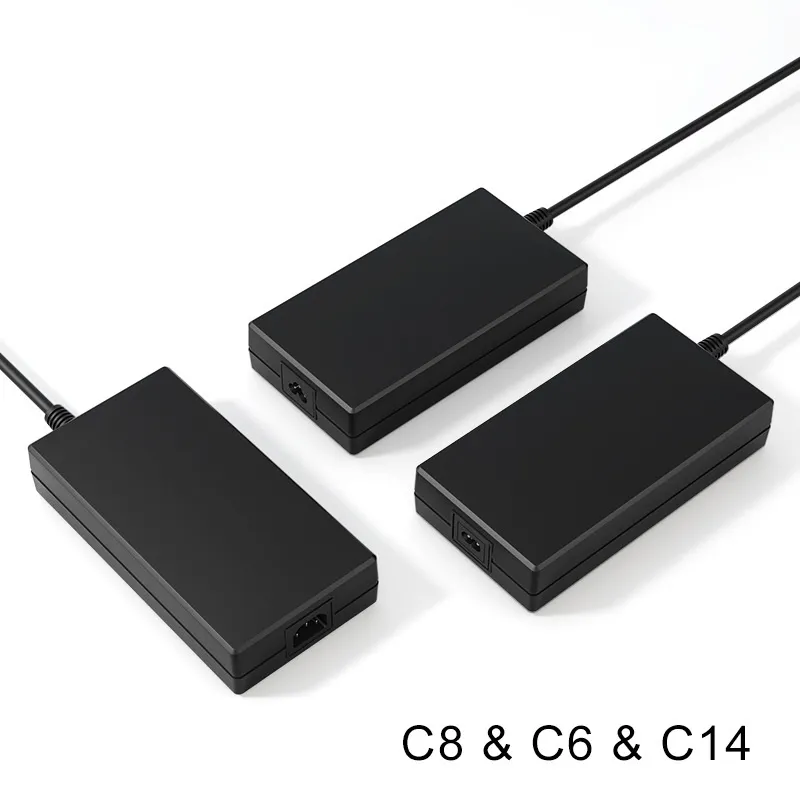

36V 10A Power Supply View 1
36V 10A Power Supply View 2
36V 10A Power Supply View 3

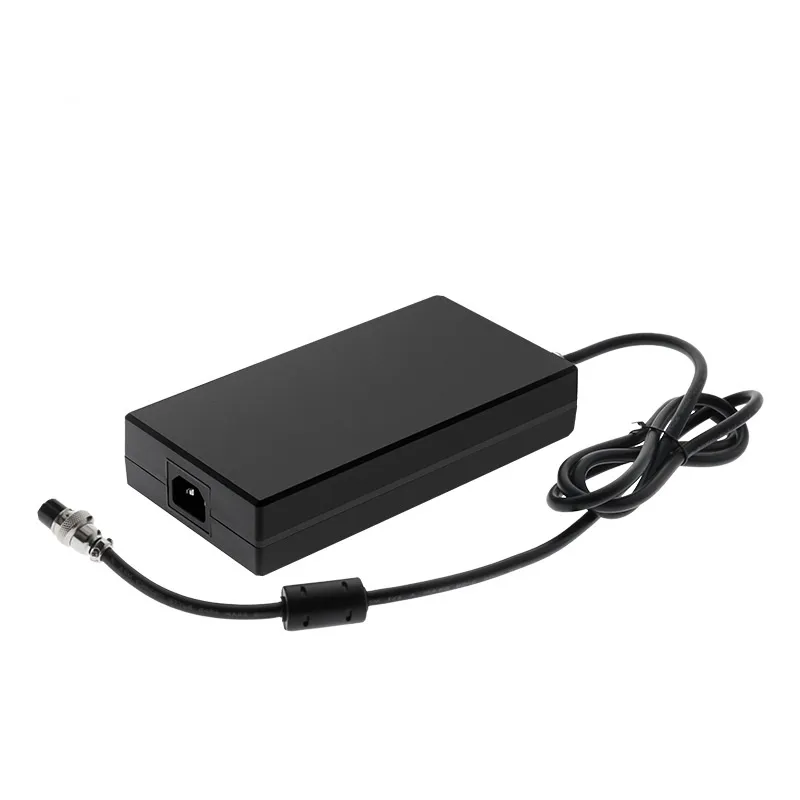

36V 10A Power Supply View 4

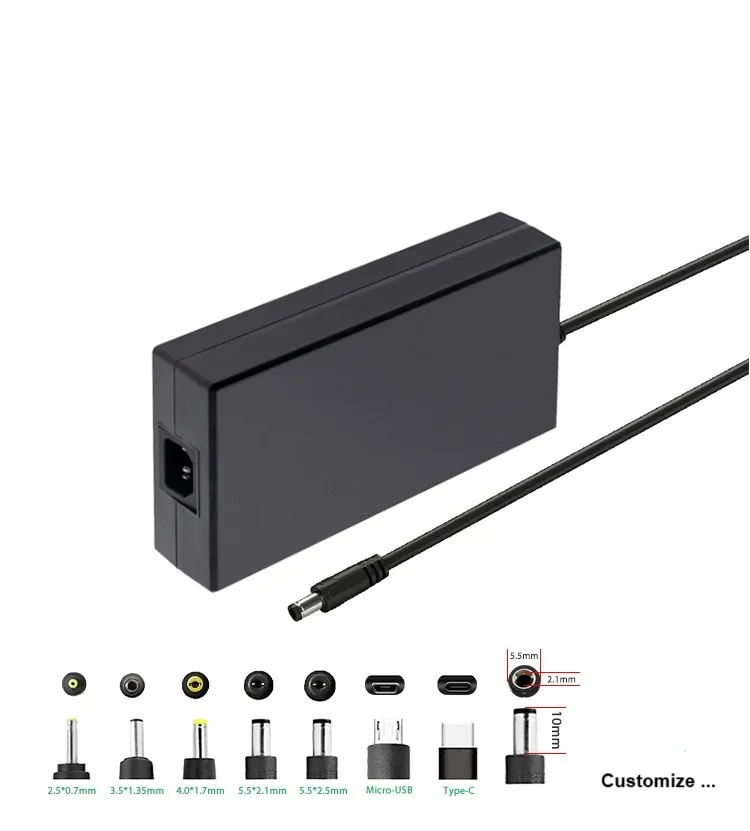

36V 10A Power Supply View 5
?

Frequently Asked Questions

What is the input voltage range for this power supply?
The unit supports a universal AC input range from 100V to 240V (nominal), and can safely operate between 90V and 264V AC at 47-63Hz.
What types of protection are built into the device?
The power supply includes multiple safety protections: Short Circuit Protection (SCP), Overload Protection (OLP), and Over Temperature Protection (OTP).
Is this power supply suitable for 24/7 operation?
Yes, it is designed for high reliability with a 100% full load burn-in test and an MTBF of over 100,000 hours.
Does this unit require an external cooling fan?
This model is designed to be cooled by free air convection, meaning it operates efficiently without the need for noisy external fans within its rated temperature range.
What certifications does this product hold?
The power supply is compliant with major international standards including CE, RoHS, FCC, UKCA, UL, and RCM.
What is the warranty period for the JJY360100?
This product comes with a standard 24-month (2 years) warranty for peace of mind and quality assurance.
