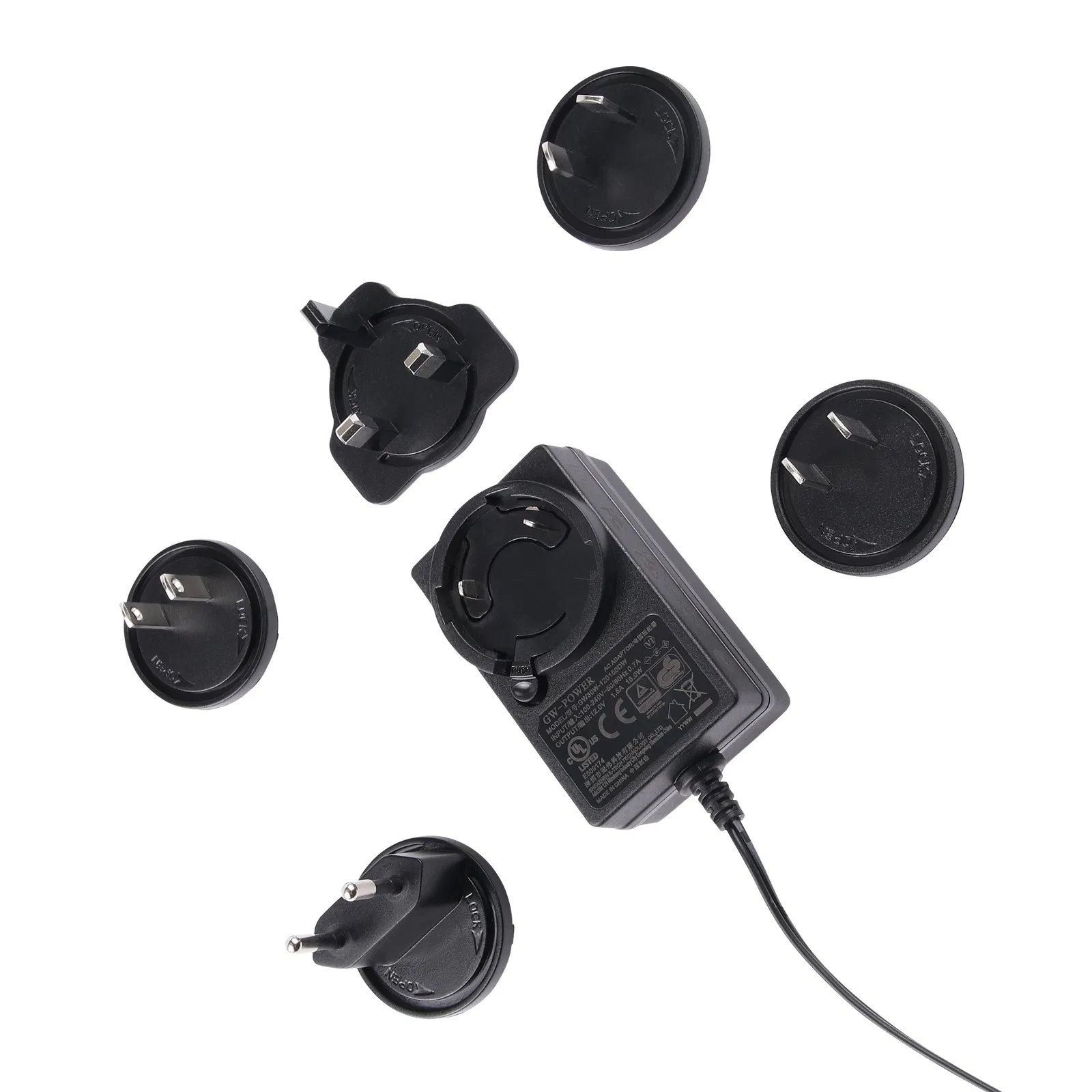

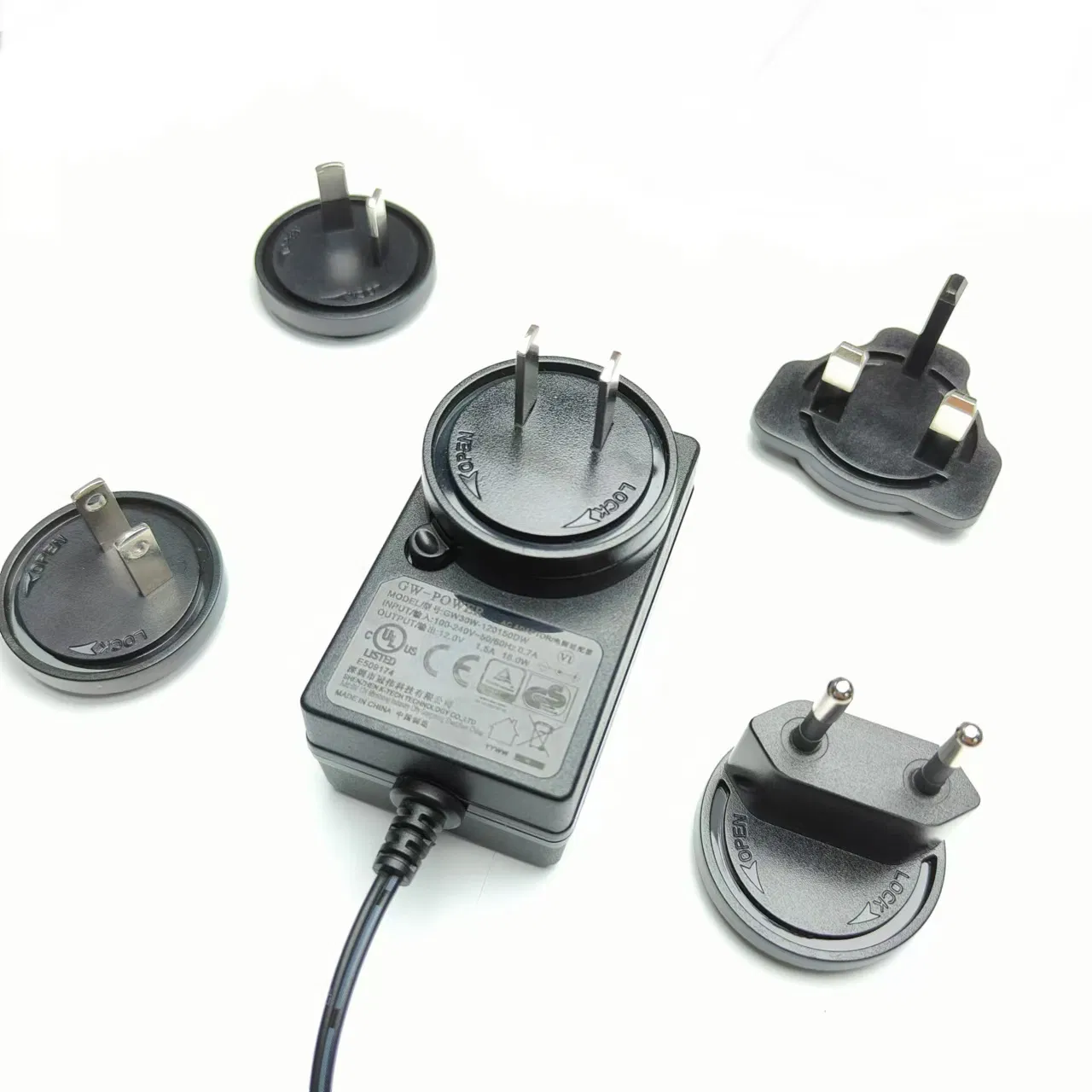

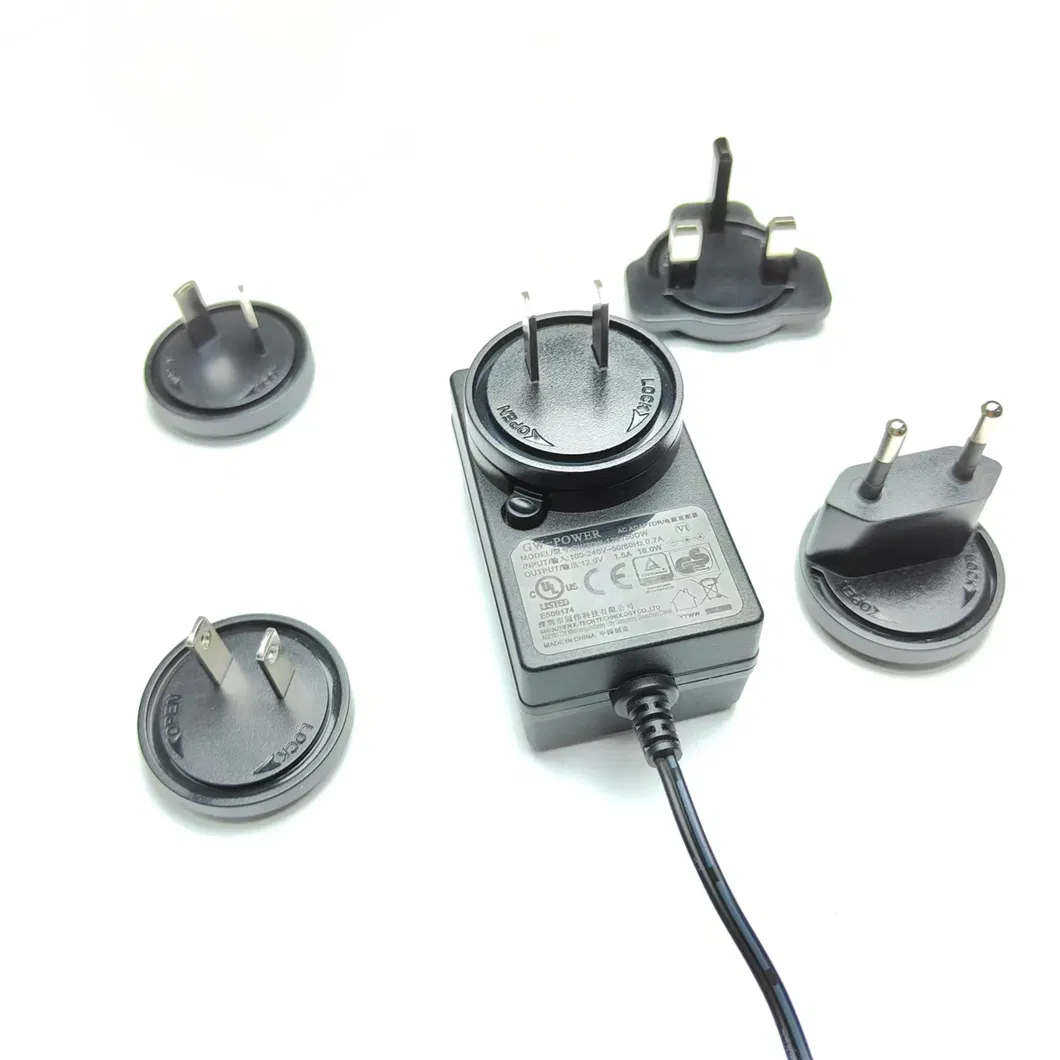

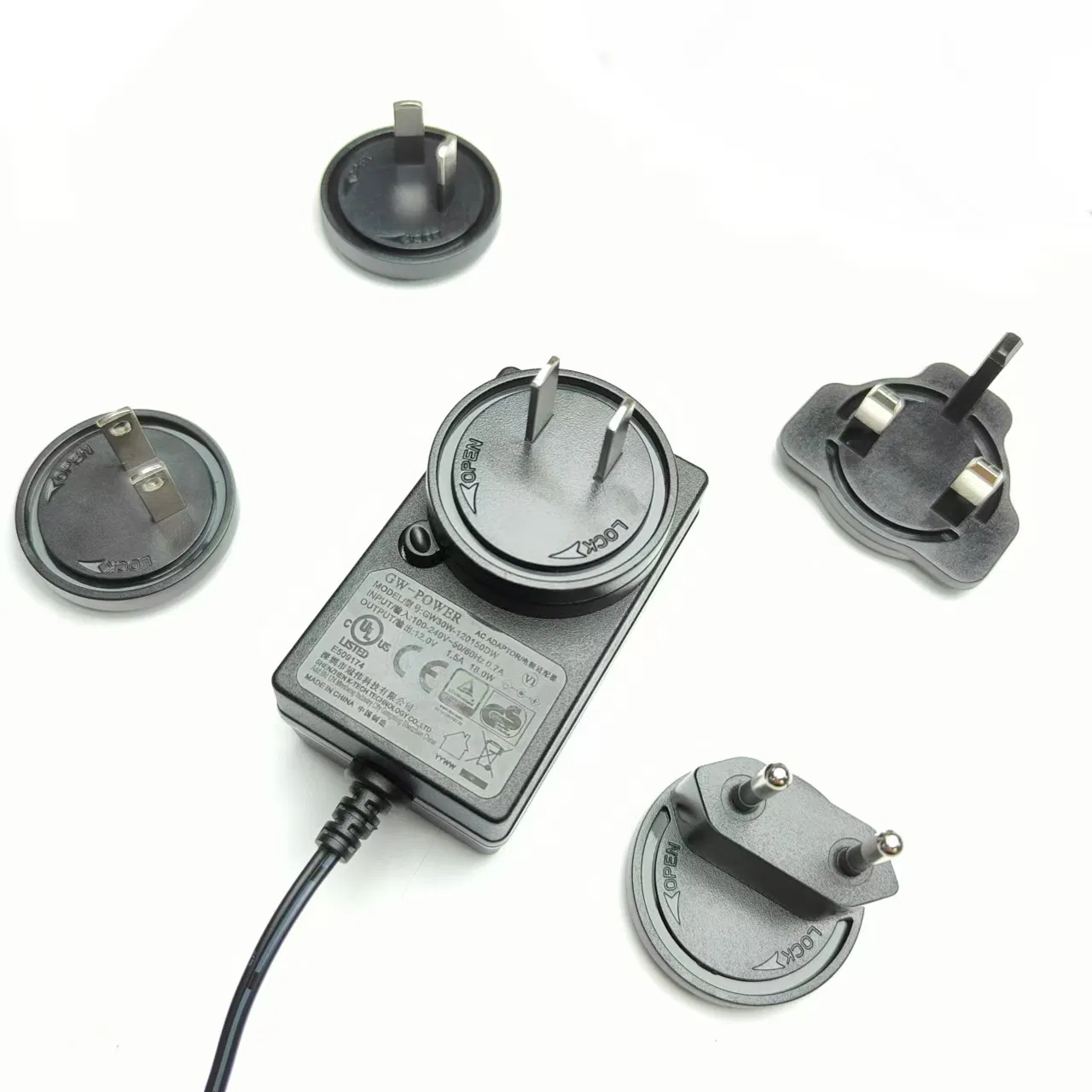

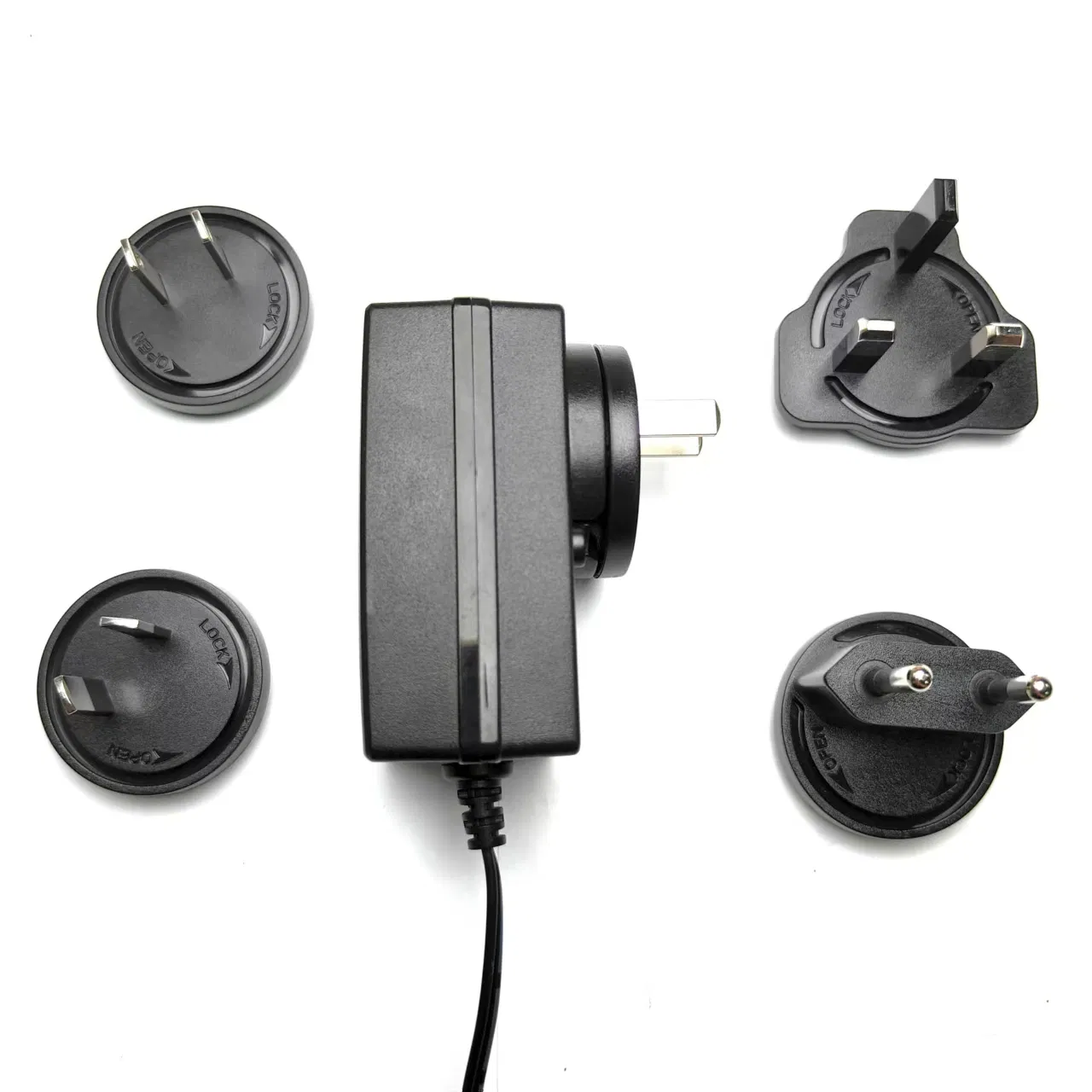

Classical 12V 2A UL Listed Wall Mount Power Adapter Universal AC DC Converter

1 / 5

Classical 12V 2A UL Listed Wall Mount Power Adapter Universal AC DC Converter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model:

GW30W-120200D NSP

Certification:

TUV, RoHS, ISO9001, CCC, GS CE UL FCC Ukca PSE

Efficiency:

Level VI of DOE & ERP (86.95%+)

Protection:

OCP, OVP, SCP, OLP, UVLO

Input:

90-264VAC, 50/60Hz, 0.7A

Size:

71X43.3X38.5mm

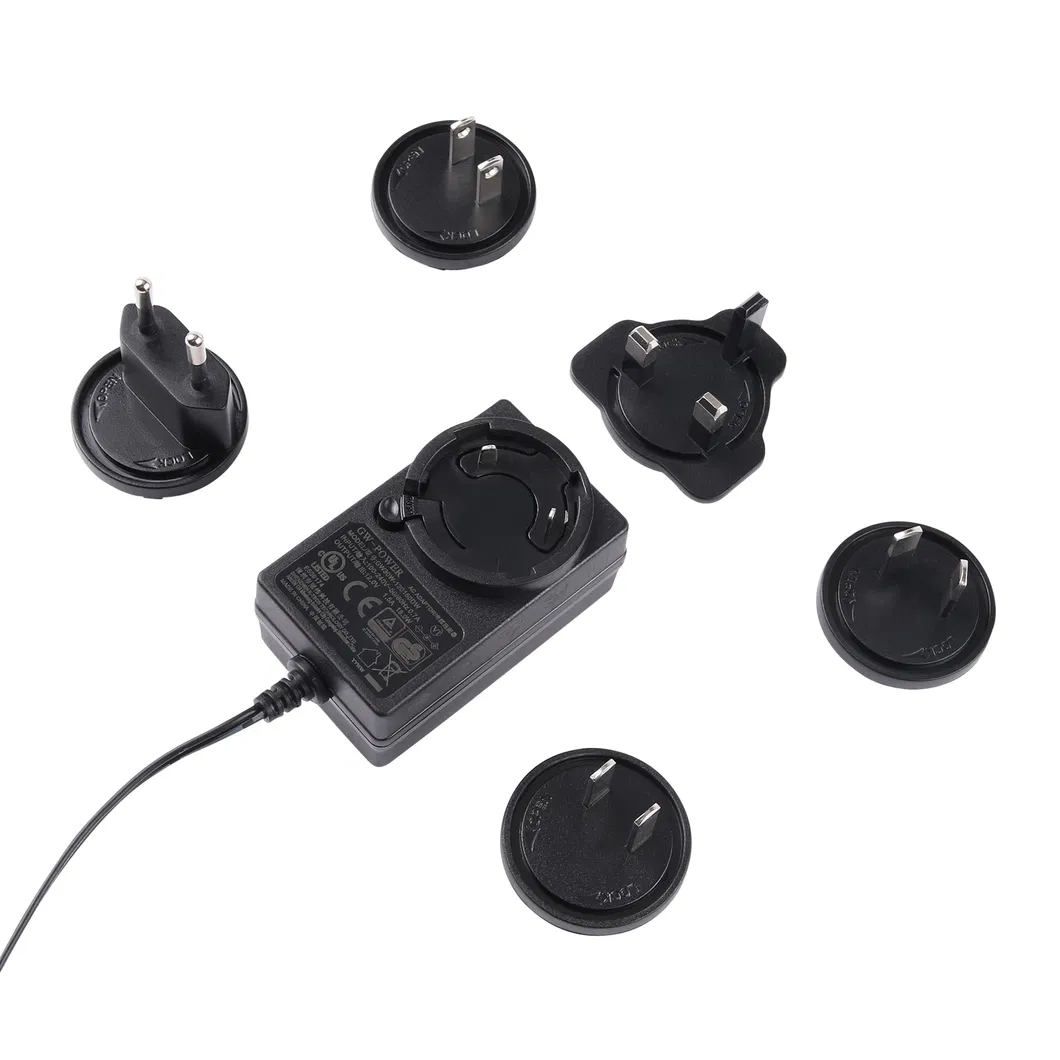

General Introduction

Universal Ready-Made Power Adapter: IEC62368 standard complied 12V 2A UL listed wall mount power adapter. Compatible with CCTV security cameras, routers, network switches, and more. Output ranges available from 5V to 25V (0.01A to 4.0A).

✅ Universal Input (90-264Vac)
✅ International Safety Certifications
✅ Low ripple and noise cancellation
✅ Supreme safe protection mechanisms

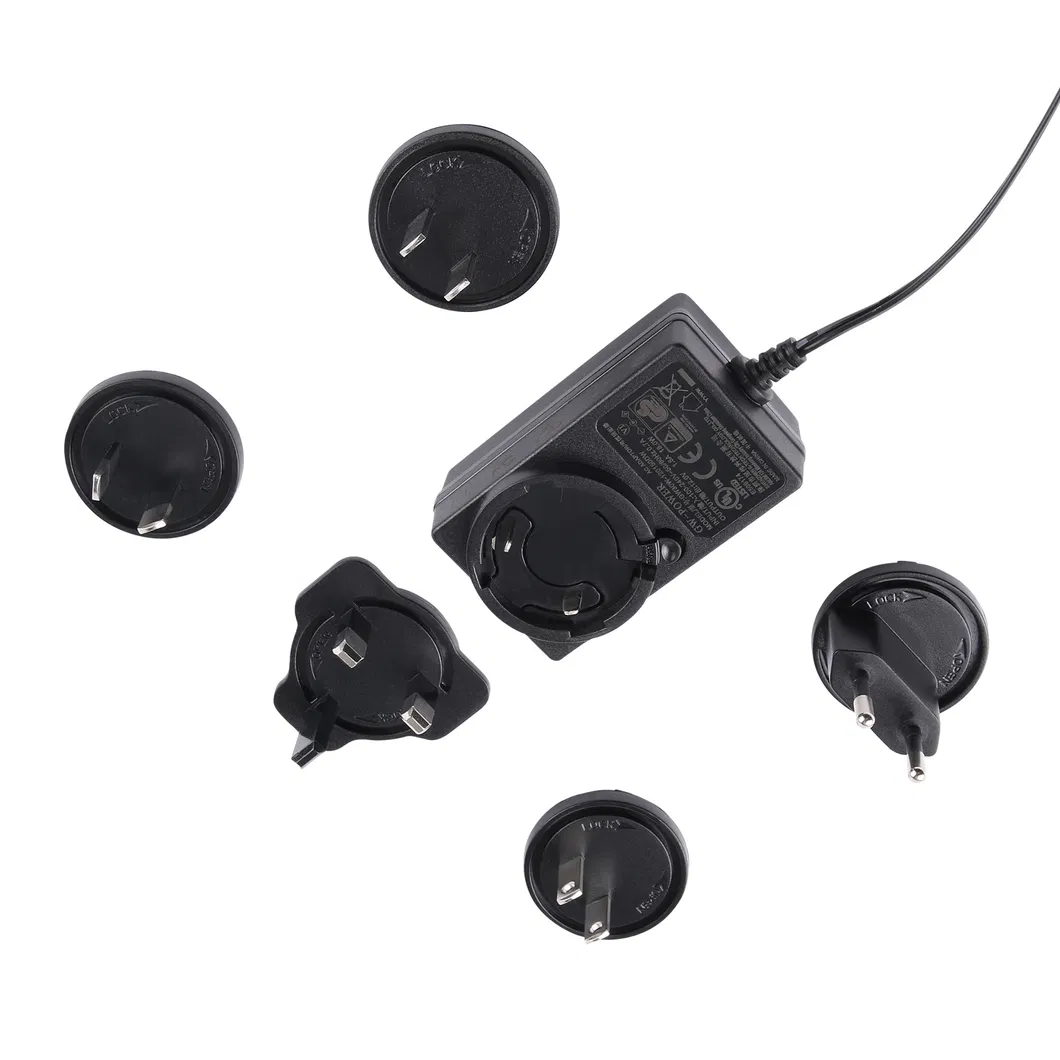

Applications

This essential power accessory meets standard 62368 and fits a wide range of devices including:

• Drones & Label printers

• ICT & ITE equipment

• Power tools & Routers

• Dehumidifiers & Humidifiers

• Musical instruments

• Astronomical telescopes

We Help Resolve Power Issues

Are you encountering any of these issues?

1. Insufficient power output / Device malfunction
2. Overheating and fire hazards
3. Inadequate safety protection
4. Short product lifespan
5. Excessive ripple noise damaging audio quality

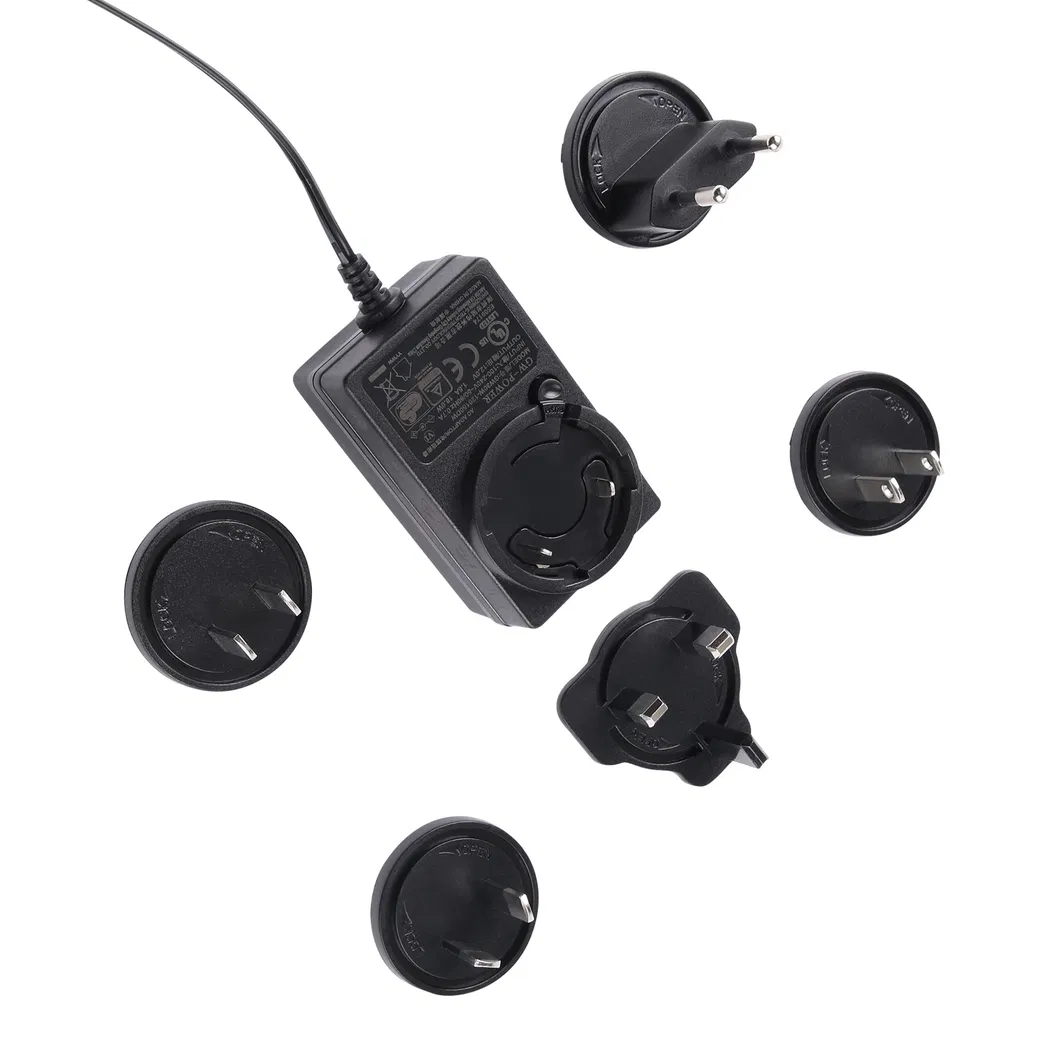

Product Parameters

Input Characteristics	Specifications
Rated input voltage	100-240Vac
Operating range	90-264Vac
Rated input frequency	50/60Hz
Power consumption (no load)	0.1W Max

Output Requirements	Specifications
DC output voltage	12.0V
Rating load current	2.0A
Rating output power	24.0W
Efficiency	86.95% Min (Level VI)

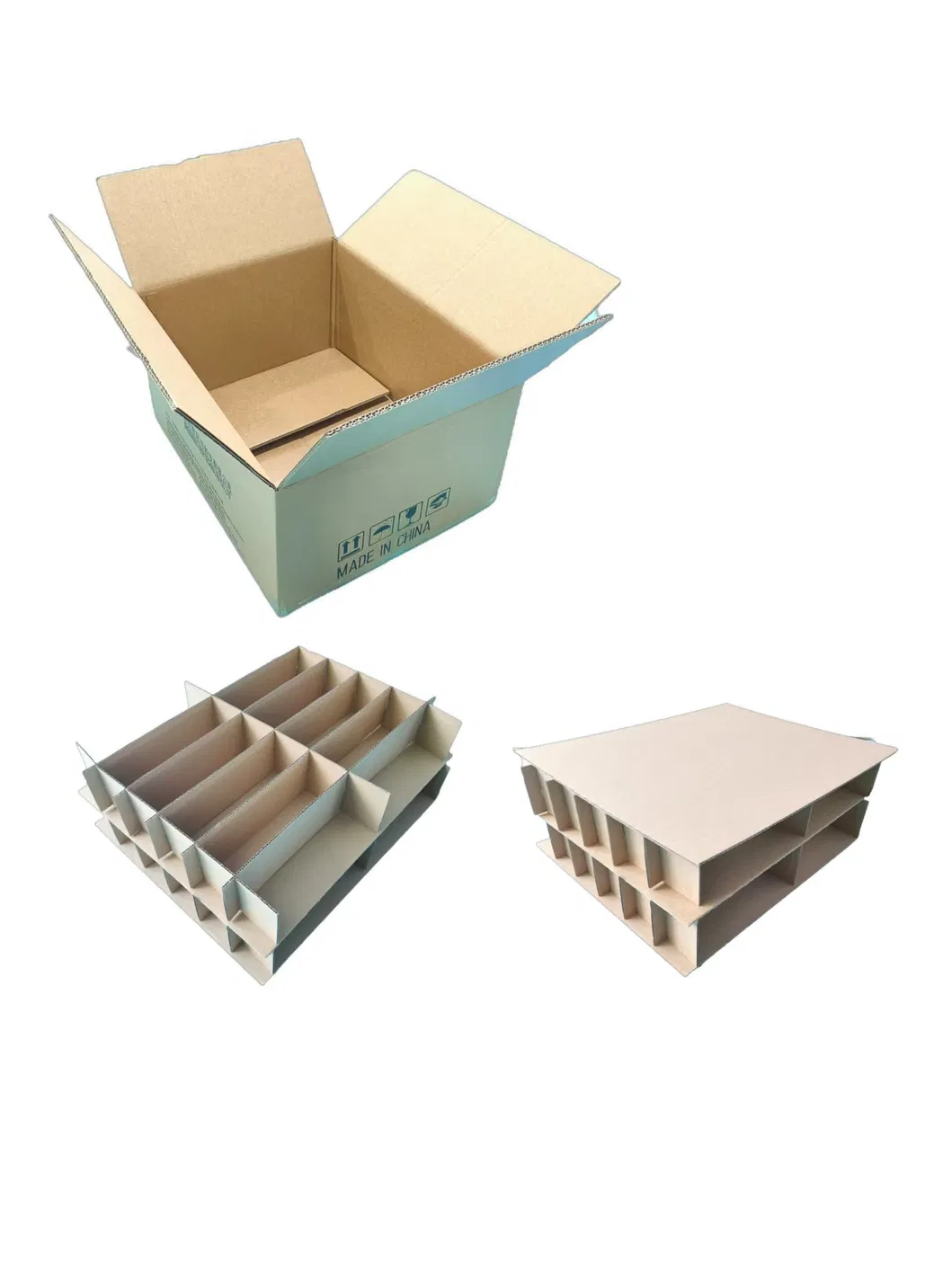

Delivery, Material & Size

Case Material: PC (Fireproof)
Weight: ≈110g | Color: Black | LED: Green Status Indicator

Customization Options

Voltage Range (VDC)	Current Range (Amp)	Max Power
5.0 - 5.9	0.01 - 4.0	20W
8.0 - 15.9	0.01 - 3.0	30W

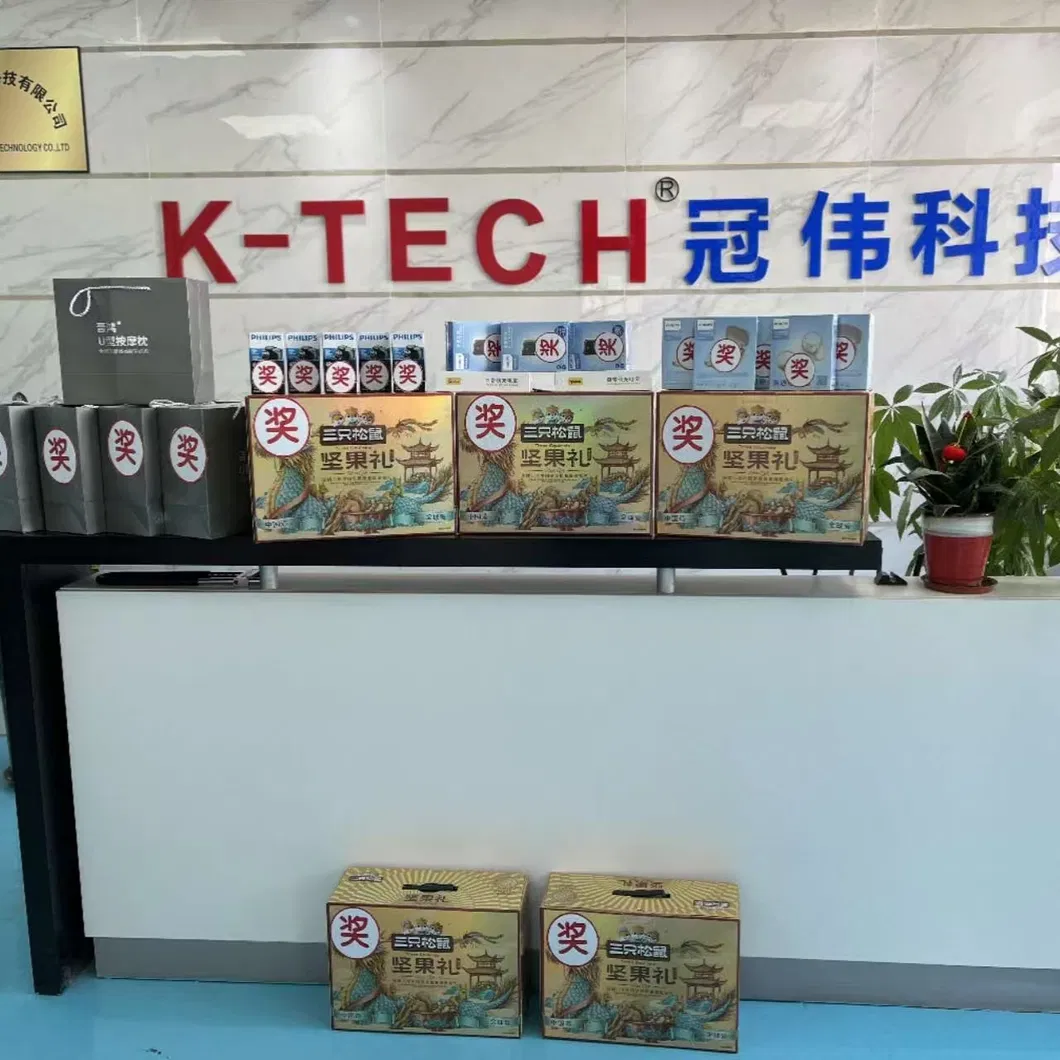

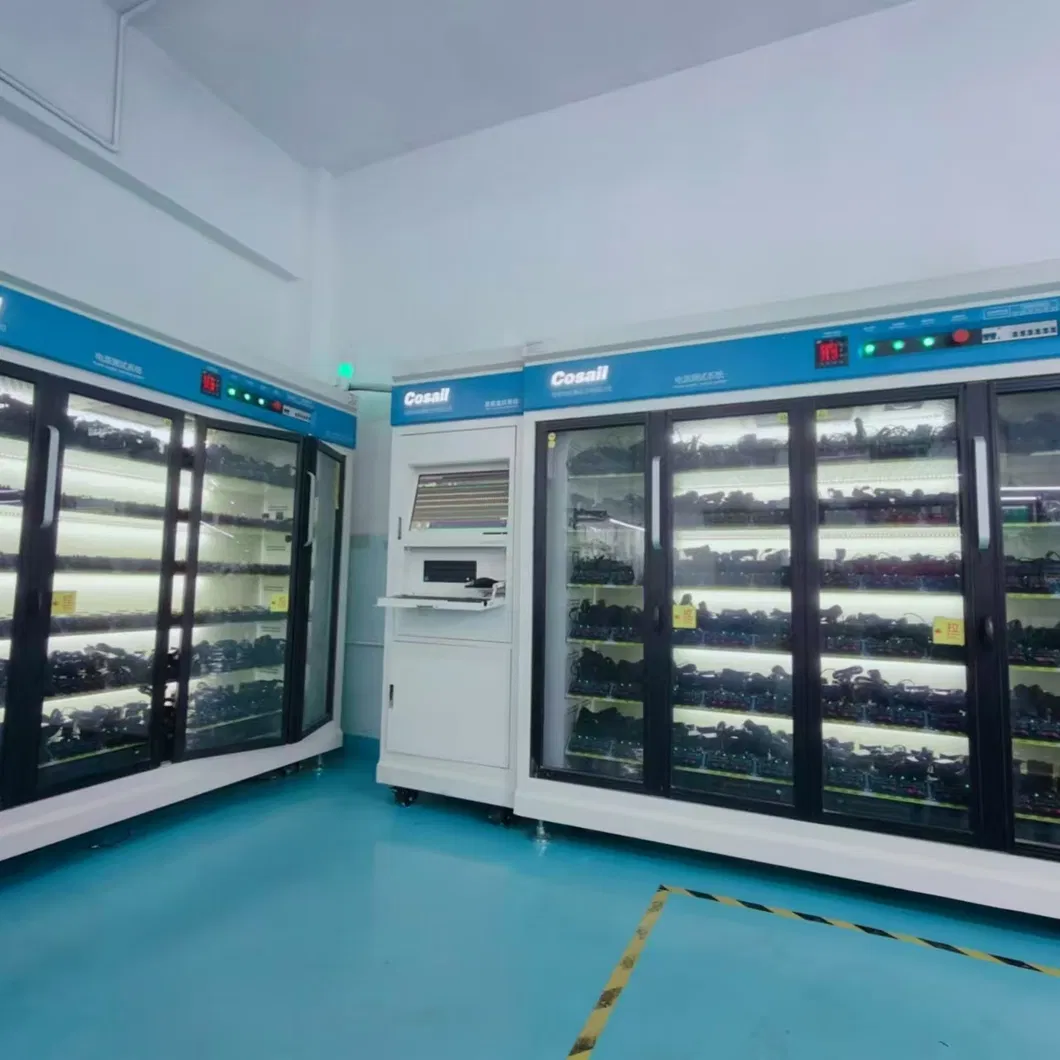

Factory Life & Capacity

Frequently Asked Questions

Q1: What safety certifications does this 12V 2A adapter have?

The adapter is fully certified with UL, cUL, CE, GS, UKCA, SAA, PSE, and CCC, meeting the global IEC62368 safety standard.

Q2: Can I customize the DC cable length and connector type?

Yes, we offer customization for DC cable type, length, connector size, and even the nameplate information to suit your specific device requirements.

Q3: How energy efficient is this power supply?

Our adapters meet the DOE Level VI and ErP standards, with an average efficiency of 86.95% or above and low standby power consumption (less than 0.1W).

Q4: Is this adapter suitable for sensitive audio equipment?

Yes, it features low ripple and noise cancellation (70-120mVp-p), making it friendly for Hi-Fi audio equipment and sensitive electronic gadgets.

Q5: What is the typical lead time and MOQ?

The standard MOQ is 1000 pieces, and the typical production lead time is approximately 30 working days.

Q6: Does it provide protection against power surges?

Yes, the adapter includes built-in protection against Over Current (OCP), Over Voltage (OVP), Short Circuit (SCP), and features 4KV surge immunity.

Thank you for browsing! Together, we can forge a bright future!
