📋 Basic Info.
Certification
TUV, RoHS, ISO9001, CCC
Item
Switching Power Adapter
Input Type
Wall-Mount or Desktop
Safety
CE UL FCC Beab SAA RoHS GS C-Tick
🚀 Product Description

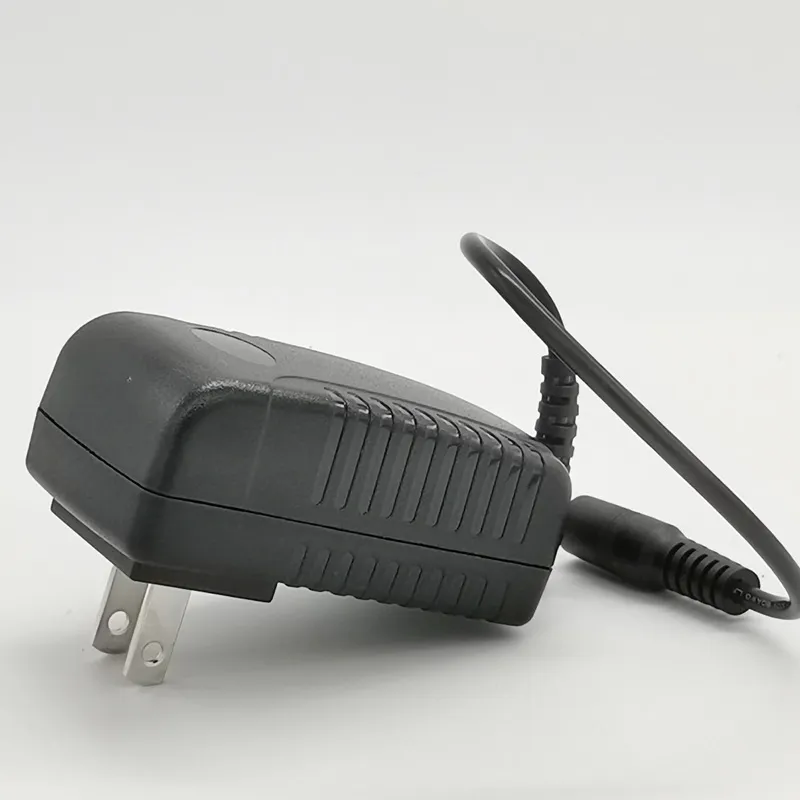

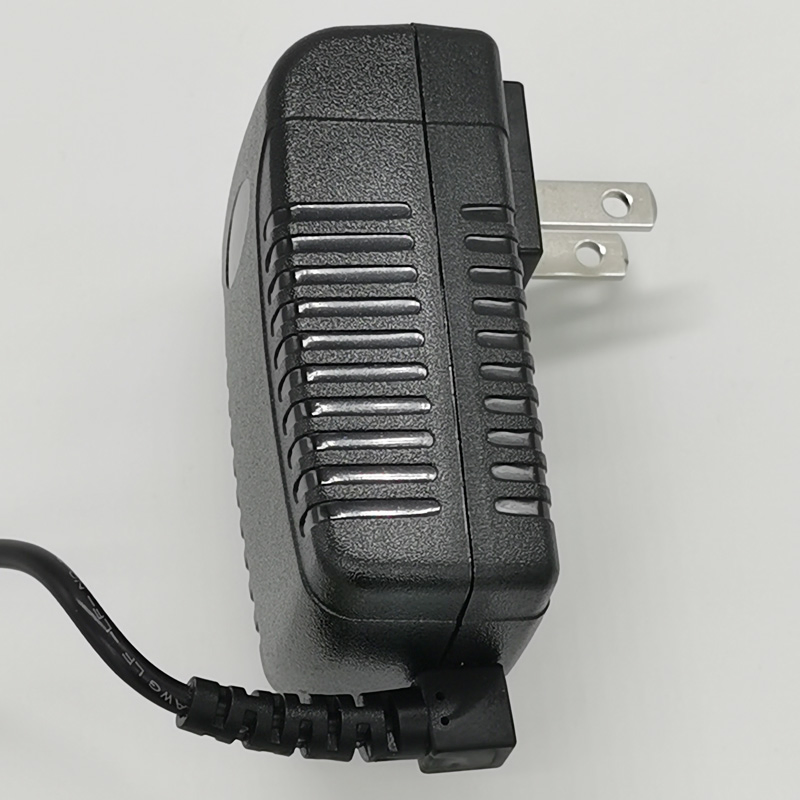

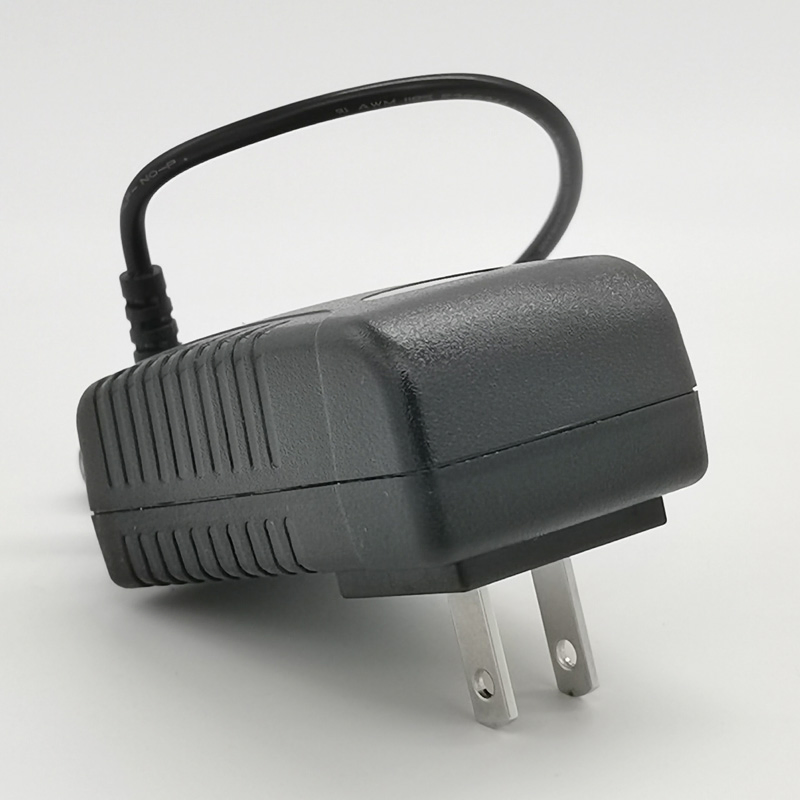

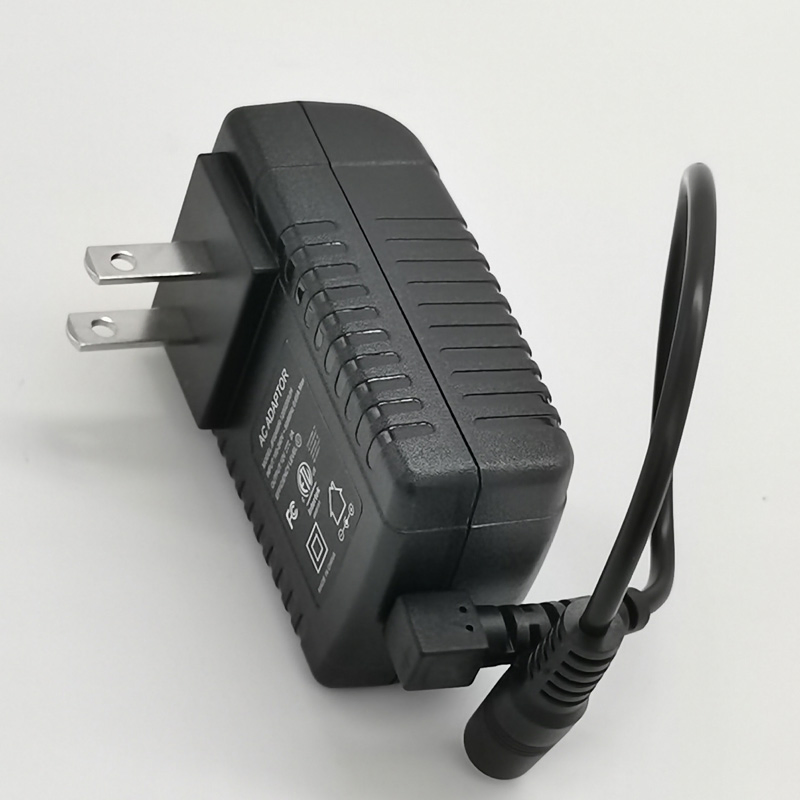

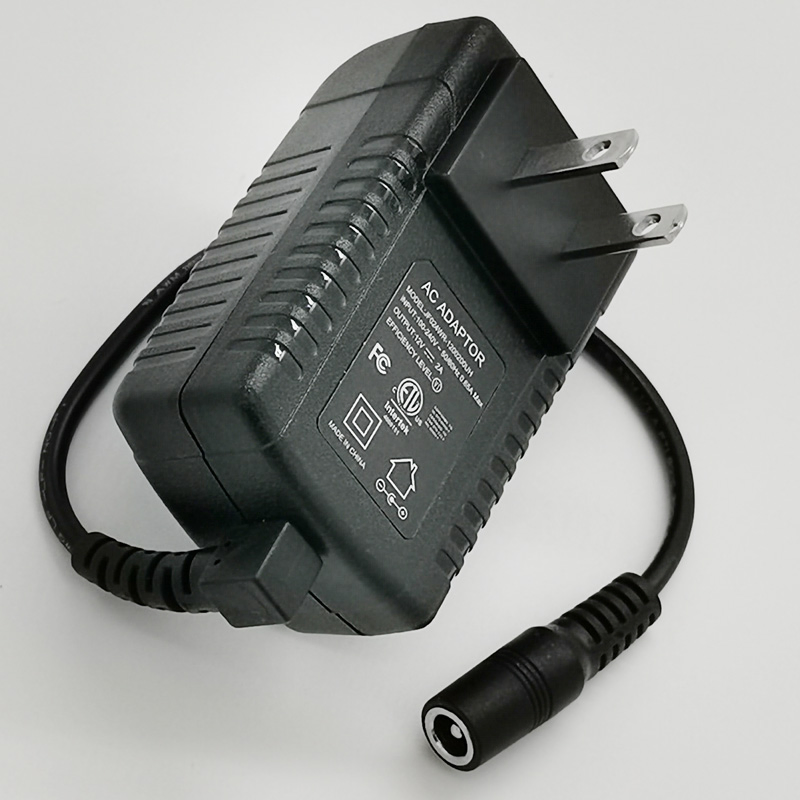

Universal Power Adapter Telephone Headset Adapter
- AC DC switching power adapter
- Plug: Australian or European or USA or UK or Brazil
- Certifications: CE/RoHS/ UL/FCC/C-Tick/SAA/BEAB/GS
- Slim and compact design
⭐ PRODUCT HIGHLIGHTS
- Complete, inexpensive, self-contained regulated power source.
- Super power supply with fixed frequency control circuit for stable output.
- Suitable for Mobile phones, PDA, Digital cameras, Walkie-talkies, Testers, HUBs, Modems, Scanners, and Printers.
- Ultra-low no-load/standby power consumption meeting EC 2005 green power requirements.
- High efficiency circuitry with built-in EMI filter.
🛡️ PROTECTION & RELIABILITY
Protections
Short circuit, Over voltage, Over current, Thermal shutdown
Burn-in
100% full load, 40 ± 5° C, 4Hrs min
MTBF
Over 50,000 hours (MIL-HDBK-217F)
Withstanding
3000Vac 1 minute 10mA max
📊 Technical Specifications
| Input Condition |
DC Output Voltage |
DC Output Current |
Ripple & Noise |
Max Power |
| 90-264Vac | 3.0-4.0V | 0.1-4.0A | 100 mV | 16W |
| 90-264Vac | 4.1-6.0V | 0.08-4.0A | 100 mV | 24W |
| 90-264Vac | 12.0-17.9V | 0.04-2.5A | 100 mV | 30W |
| 90-264Vac | 31.5-48.0V | 0.02-0.95A | 150 mV | 30W |
🏭 Production & Quality

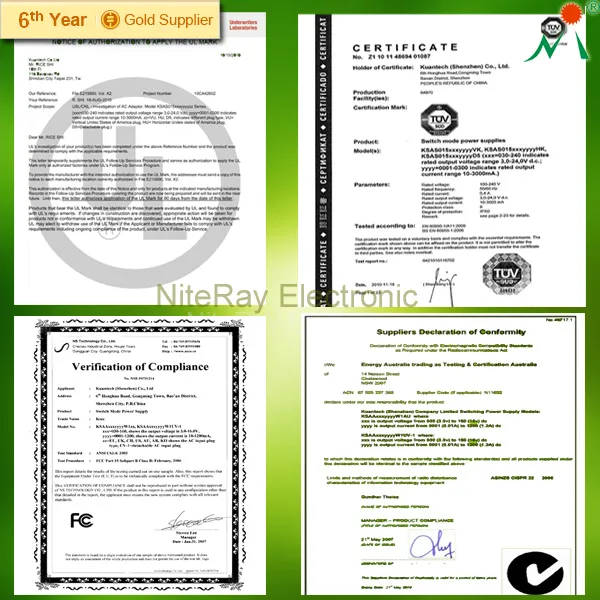

We supply high-quality power supplies to global customers with certifications including UL62368-1, IEC61558, and IEC60335.

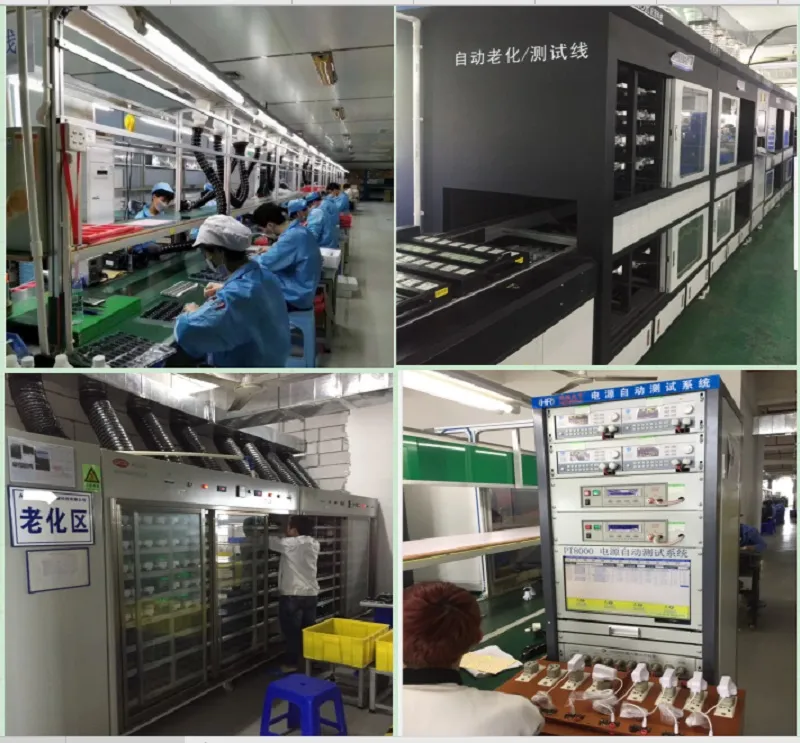

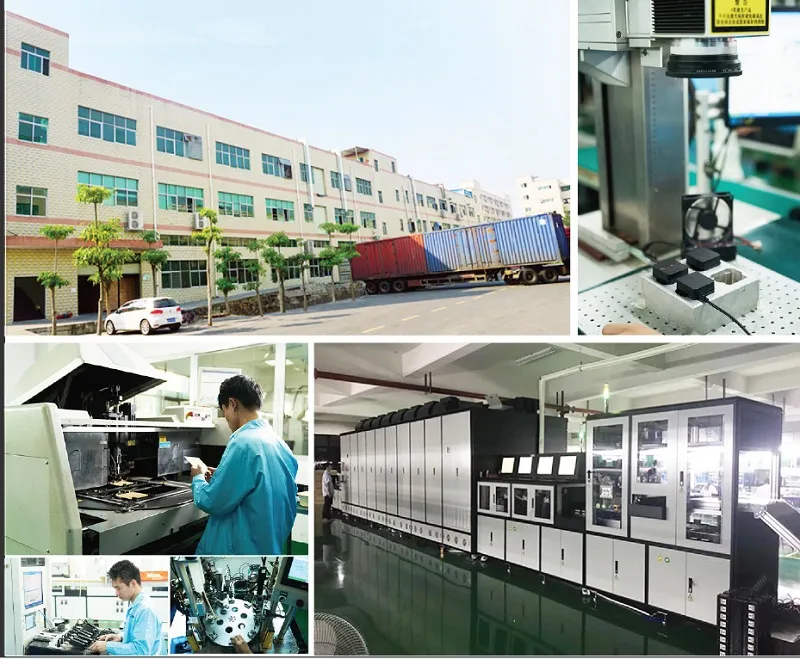

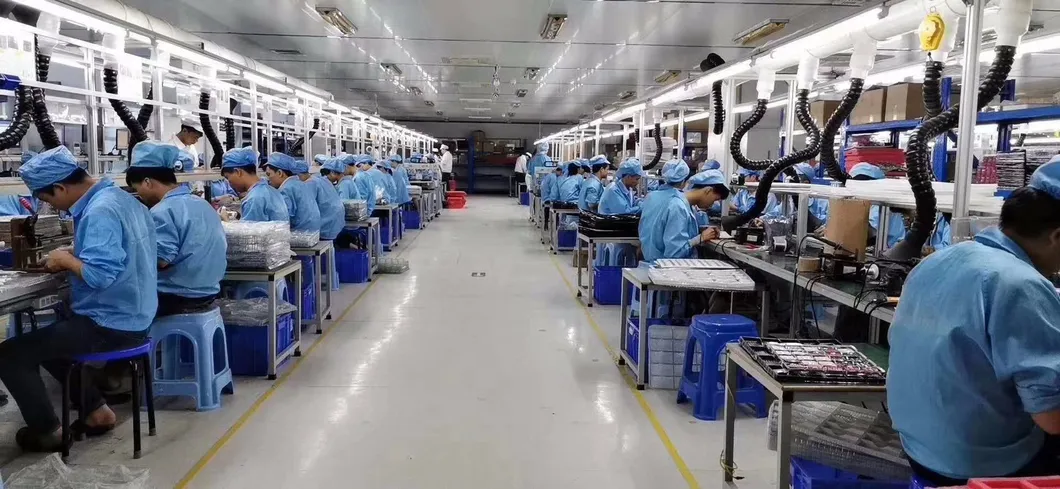

Workshop scale over 5000 square meters with skilled workers and experienced technical teams. We have adopted automatic production equipment since 2012 to improve quality and offer competitive prices.
❓ Frequently Asked Questions
Q1: What is the warranty period for the NR6025 power adapter?
A1: We provide a 2-year warranty for this switching power adapter to ensure long-term reliability.
Q2: Does this power adapter support international voltages?
A2: Yes, it supports a wide input voltage range of 90-264Vac and a frequency of 47-63Hz, making it compatible globally.
Q3: Which safety certifications does the product hold?
A3: The adapter is certified by UL, cUL, ETL, FCC, CB, GS, CE, SAA, PSE, and CCC, meeting various international safety standards.
Q4: Can I get a customized output connector?
A4: Yes, while standard sizes like 5.5*2.5 and 4*1.74 are available, we can also provide customized connectors based on your requirements.
Q5: What protections are built into the device?
A5: The adapter features short circuit protection, over-voltage protection, over-current protection, and thermal shutdown capability.
Q6: What is the energy efficiency level of this adapter?
A6: This model meets Energy Level VI, featuring ultra-low no-load and standby power consumption.
