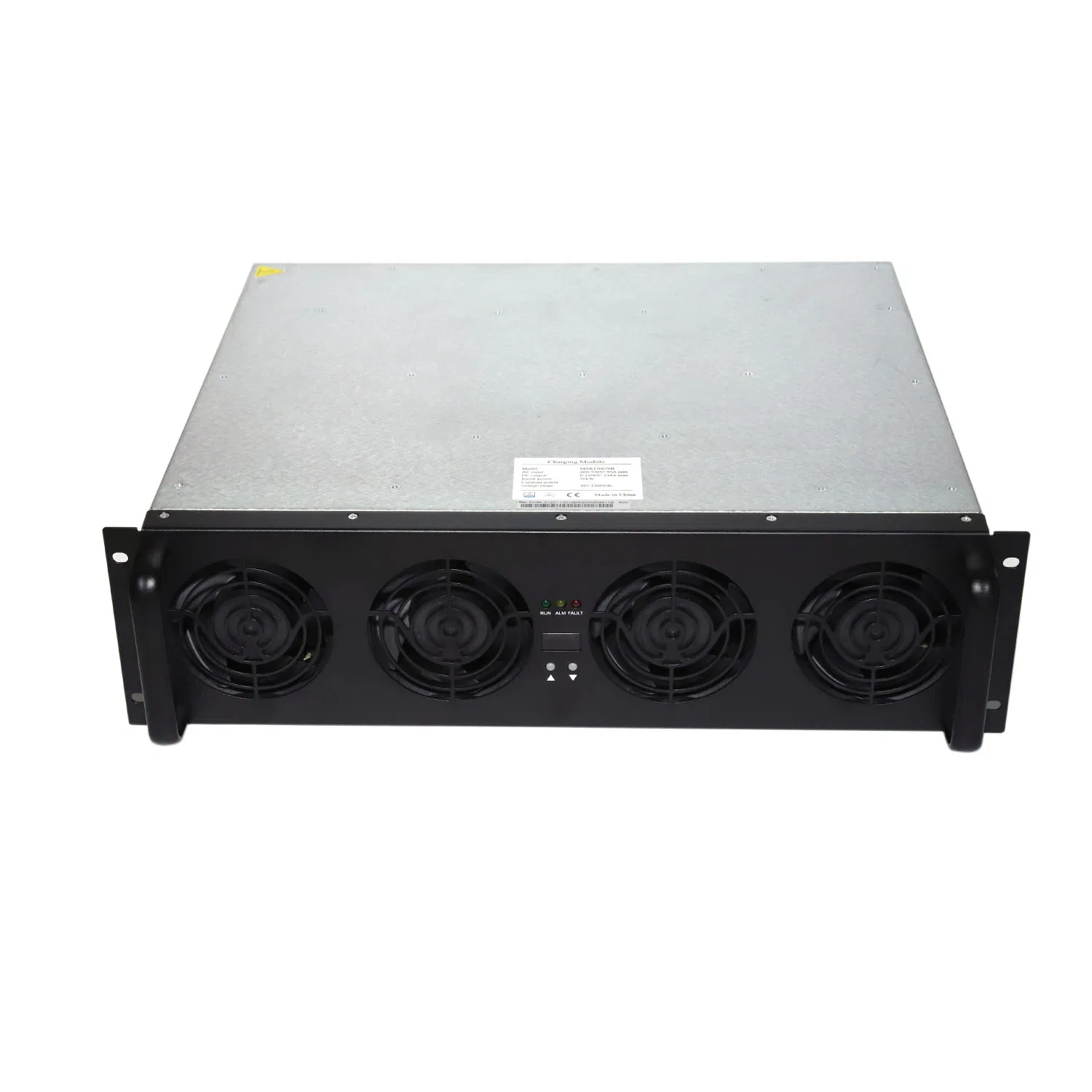

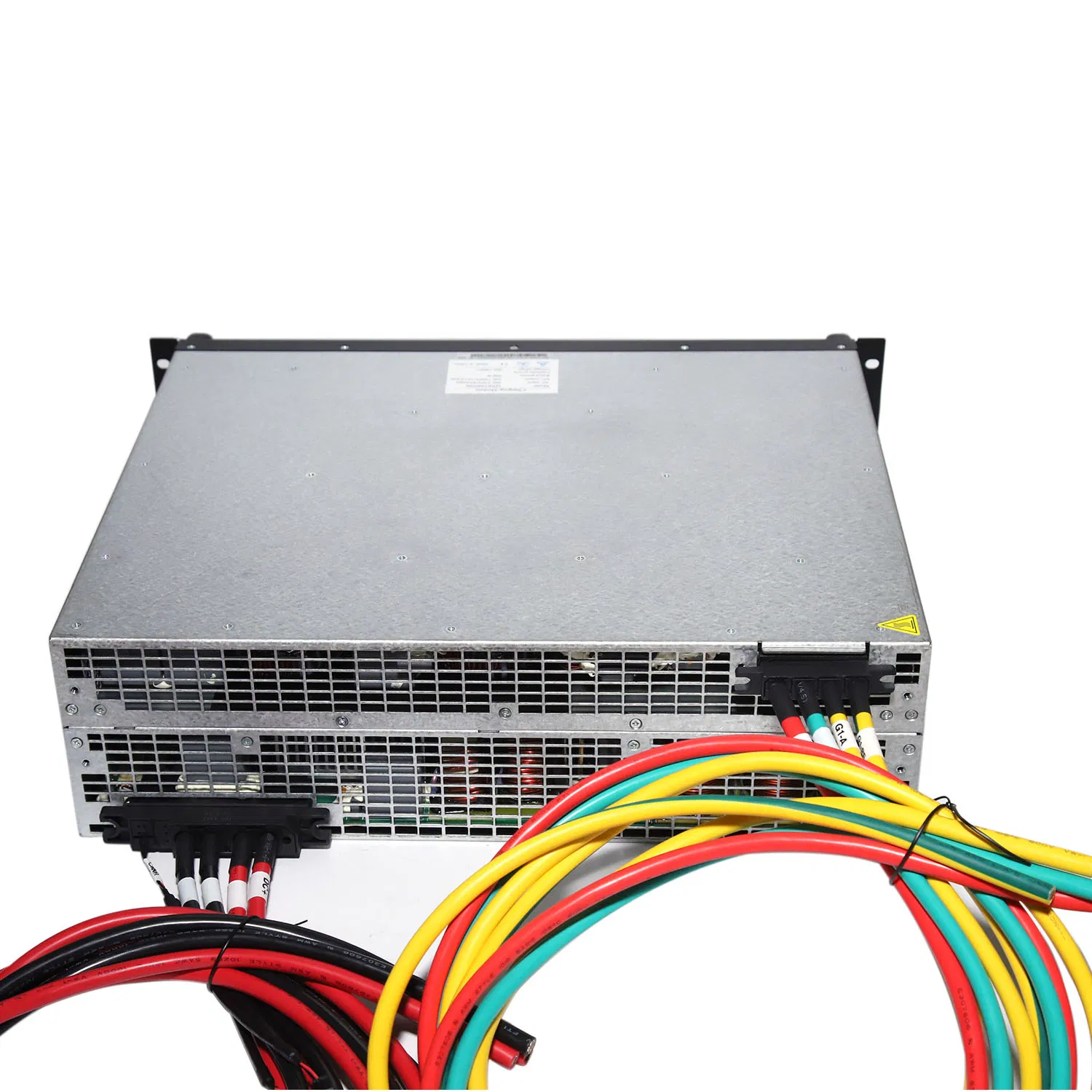

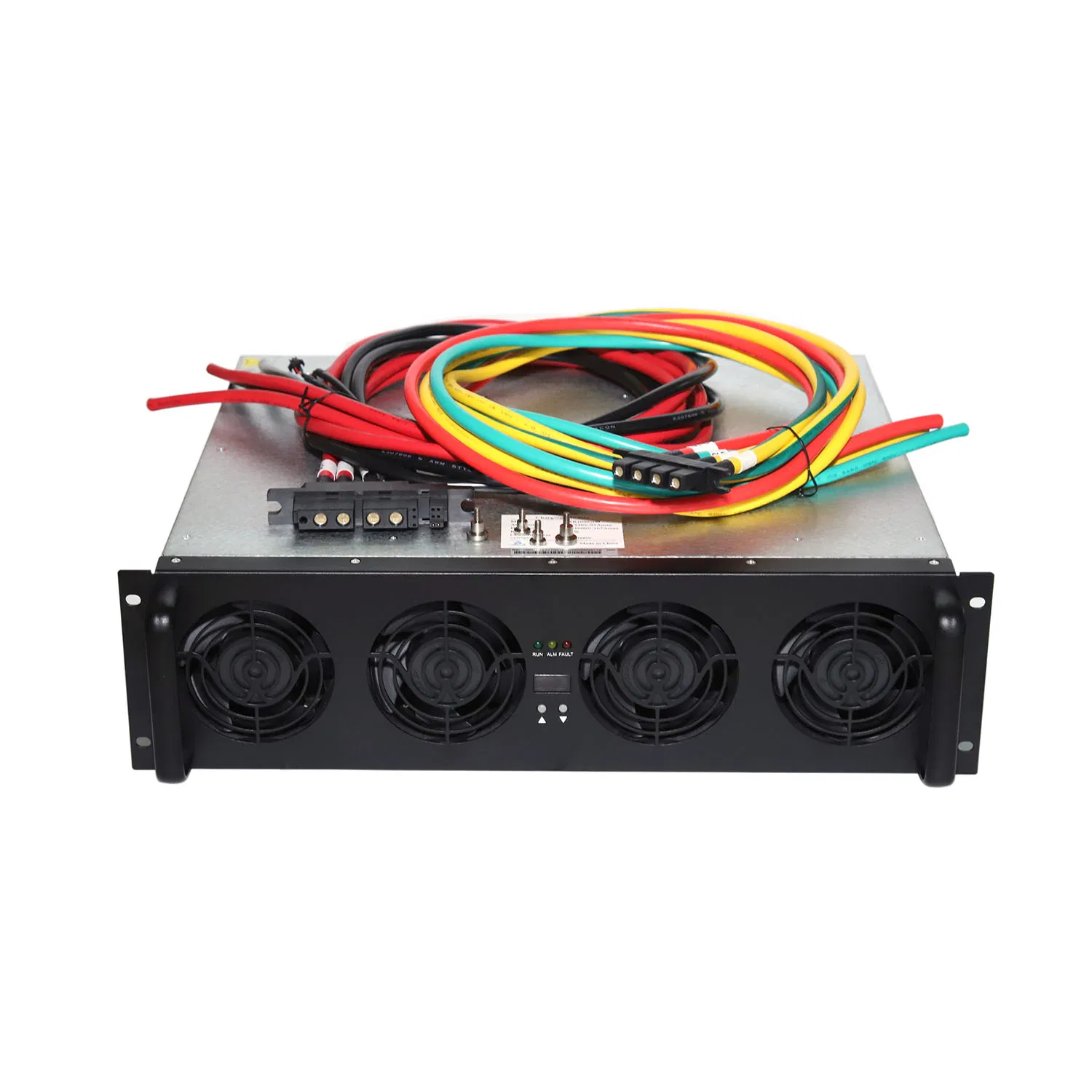

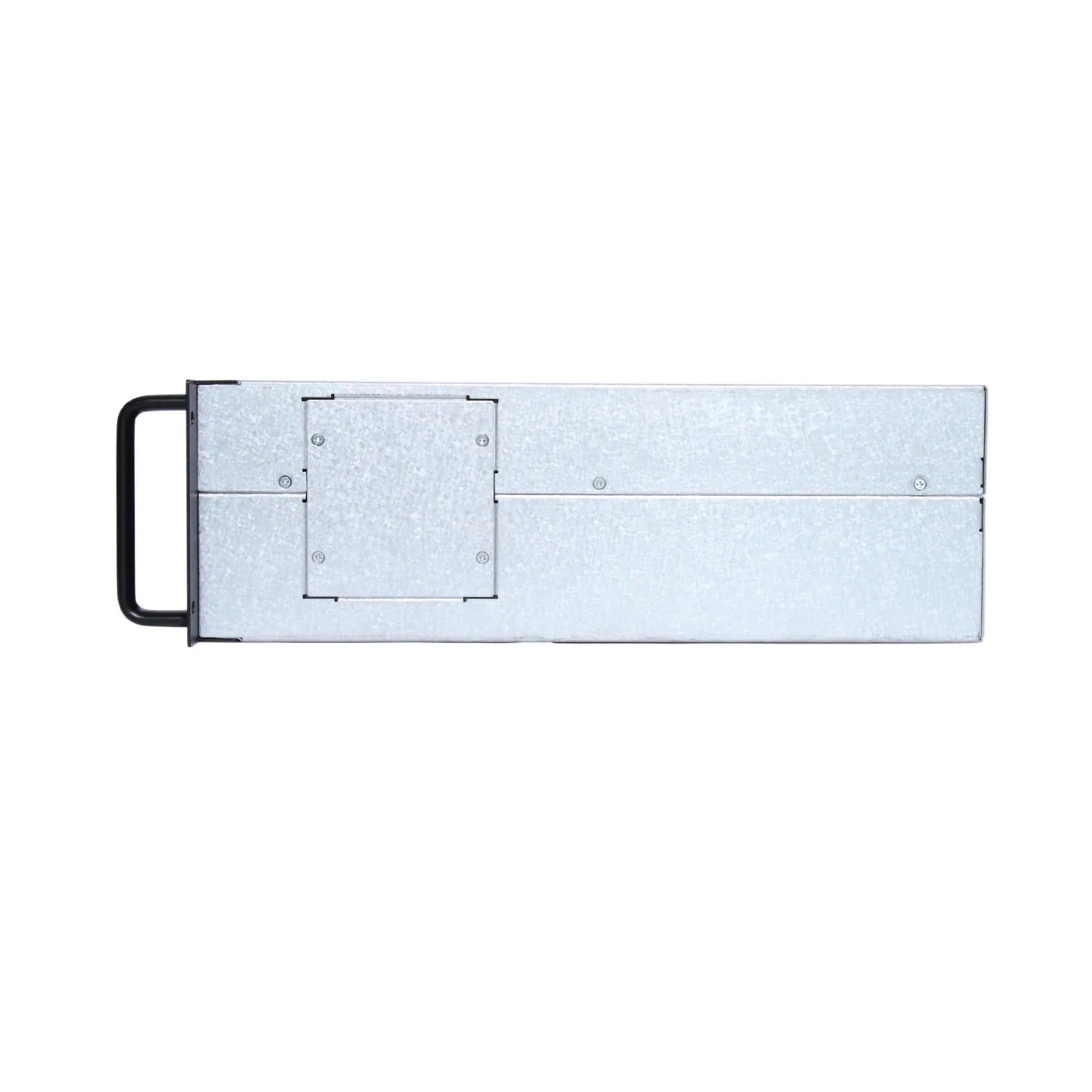

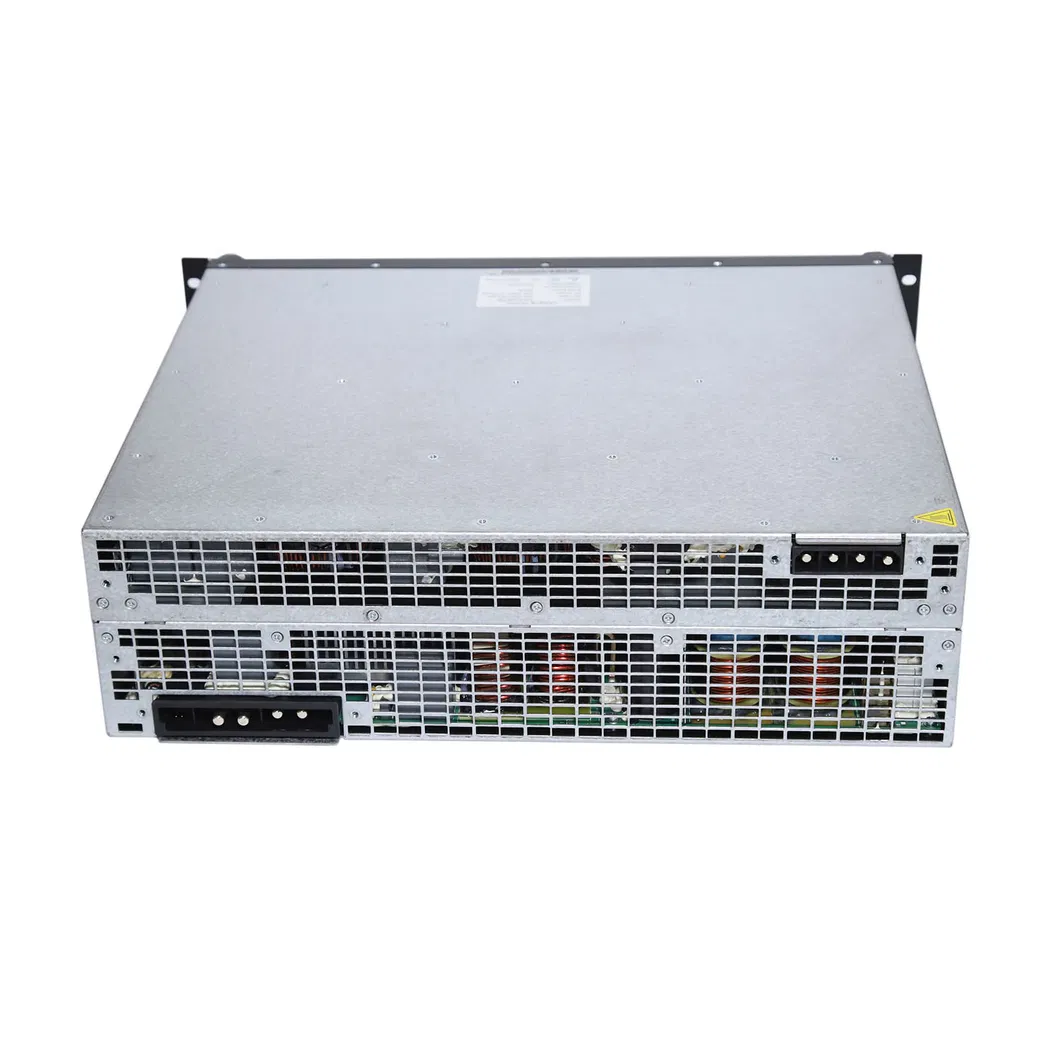

50kw Ultra-Quiet Power Converter Inverter AC to DC EV Charger Fast Charge Module

The MXR100050B-SE is a high-power AC/DC charging module specially designed for high-end charging scenarios of electric vehicles. Rated output power is 50 kW, and supports 260VAC~650VAC three-phase four-wire system (A/B/C+PE) input. The output voltage range is 200VDC~1000VDC, with a maximum output current of 167 A. It supports a silent mode setting where noise is reduced to less than 55dB.

The module uses an isolated controller area network (CAN) communications port to communicate with the system monitoring module. Users can perform voltage regulation, current limiting, and start-stop operations via the system monitoring interface.

• Ultra-low noise: support silent mode setting (55dB, 60dB)
• High protection design: sensitive components isolated from air ducts
• Wide working temperature range: -40ºC to +75ºC
• Wide input voltage range: 260VAC to 650VAC

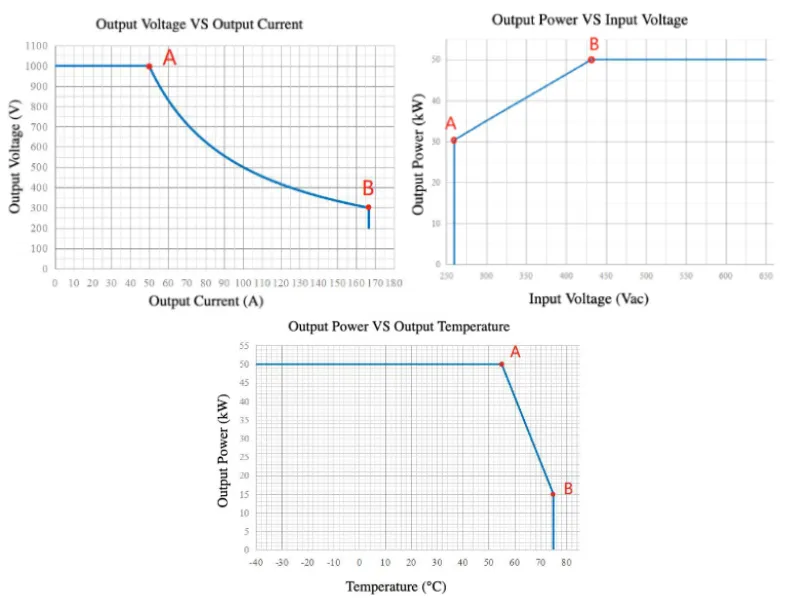

• Wide output constant power range: 300VDC~1000VDC @ 50kW
• Support hot swap function and intelligent protection
• Support CAN bus communication and LED digital display
