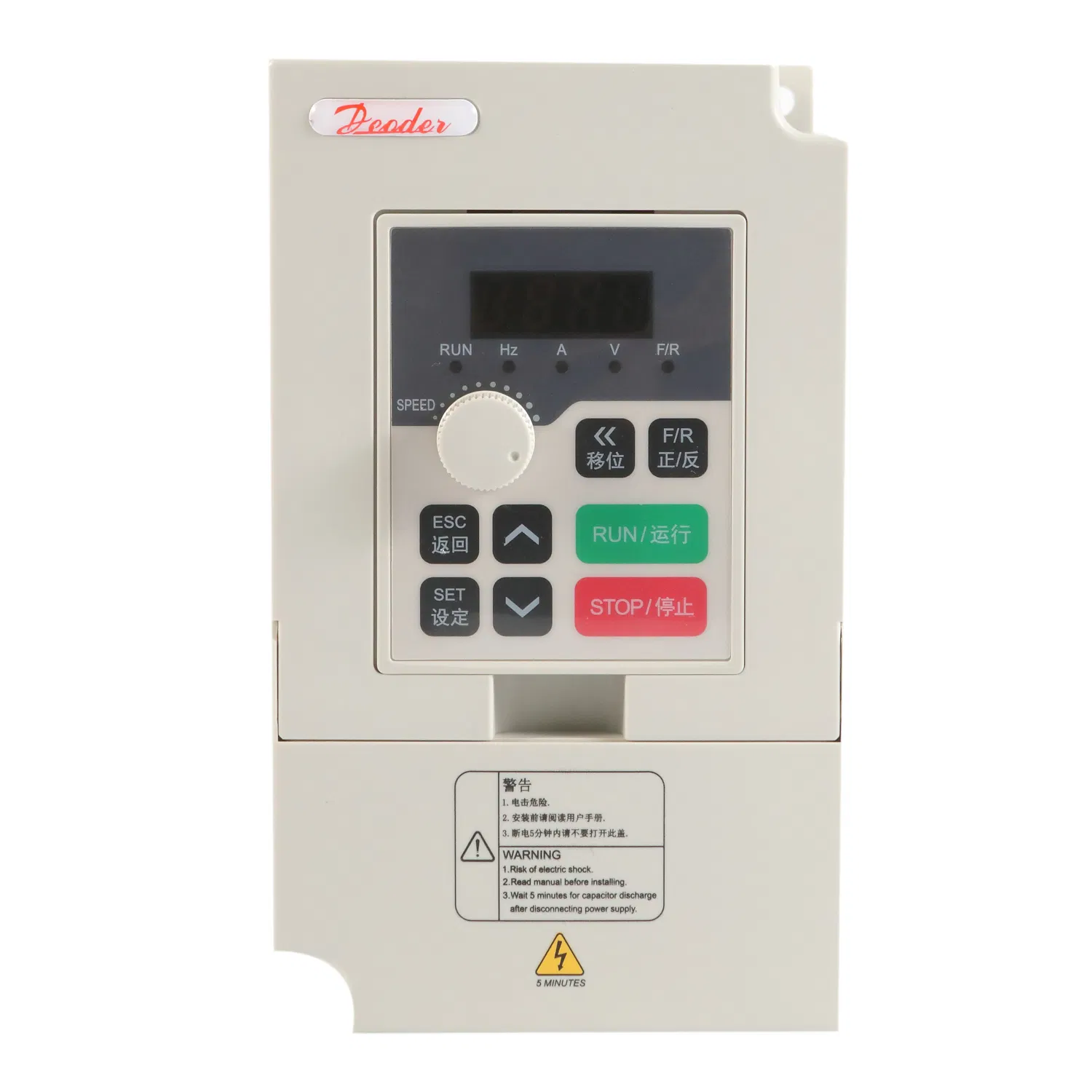

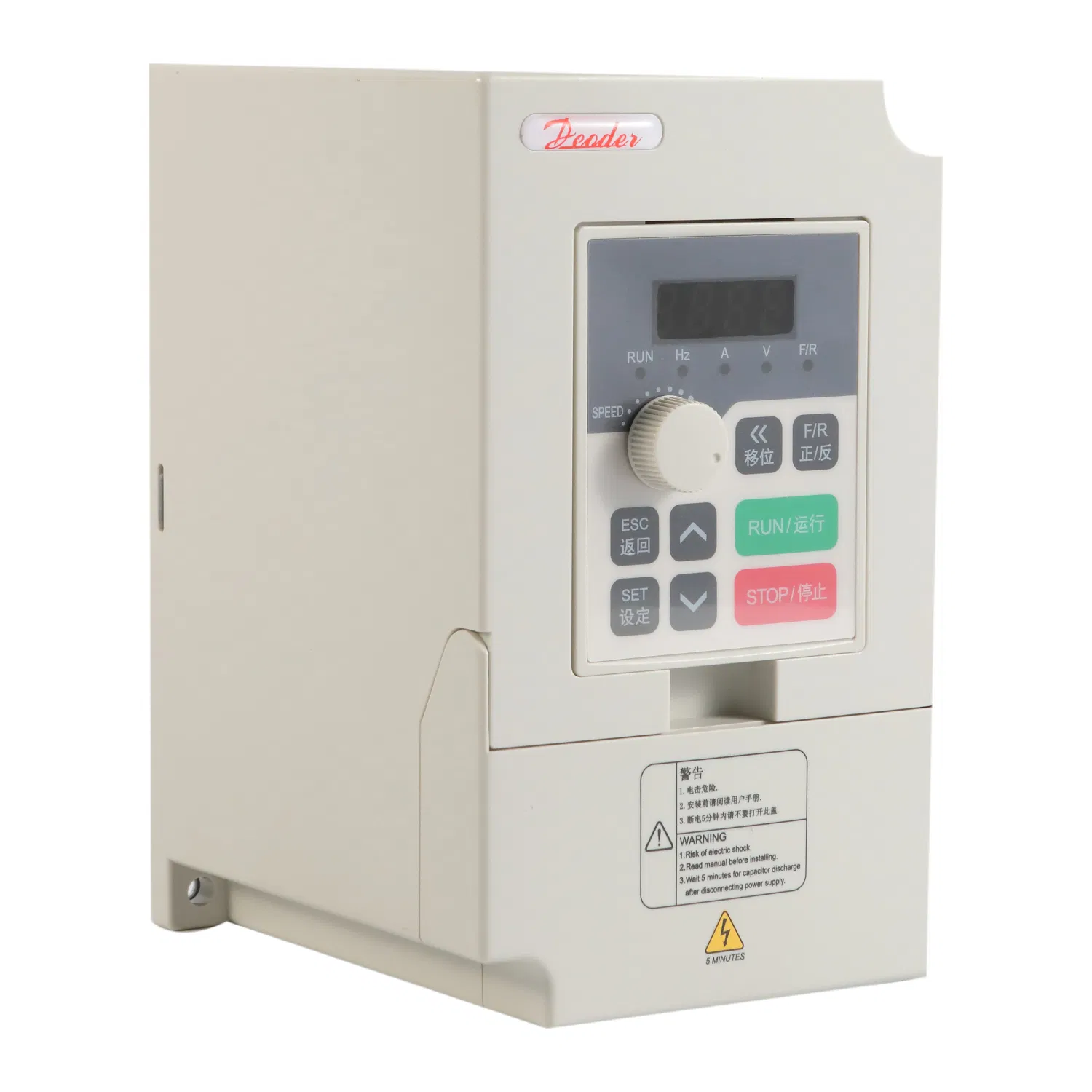

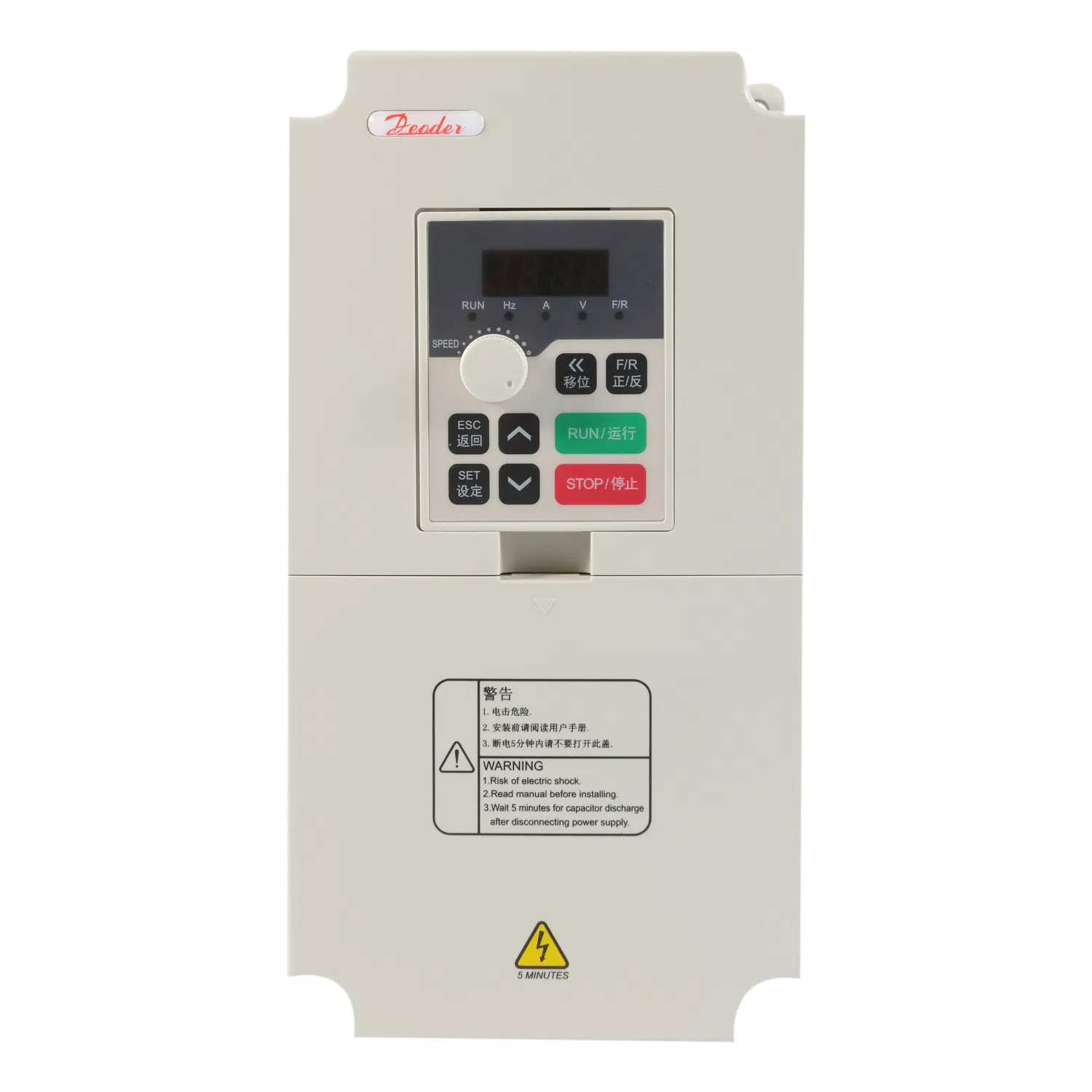

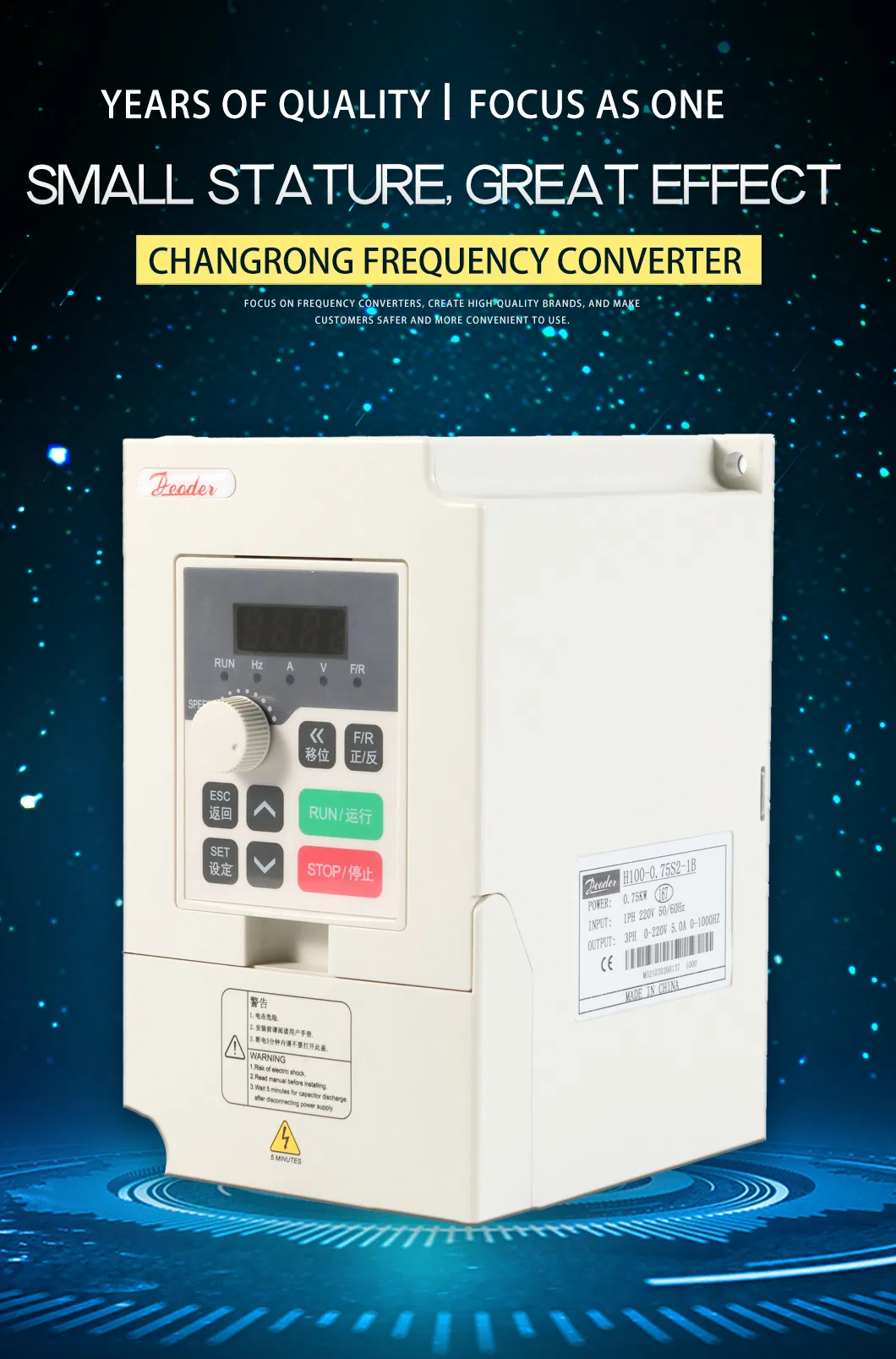

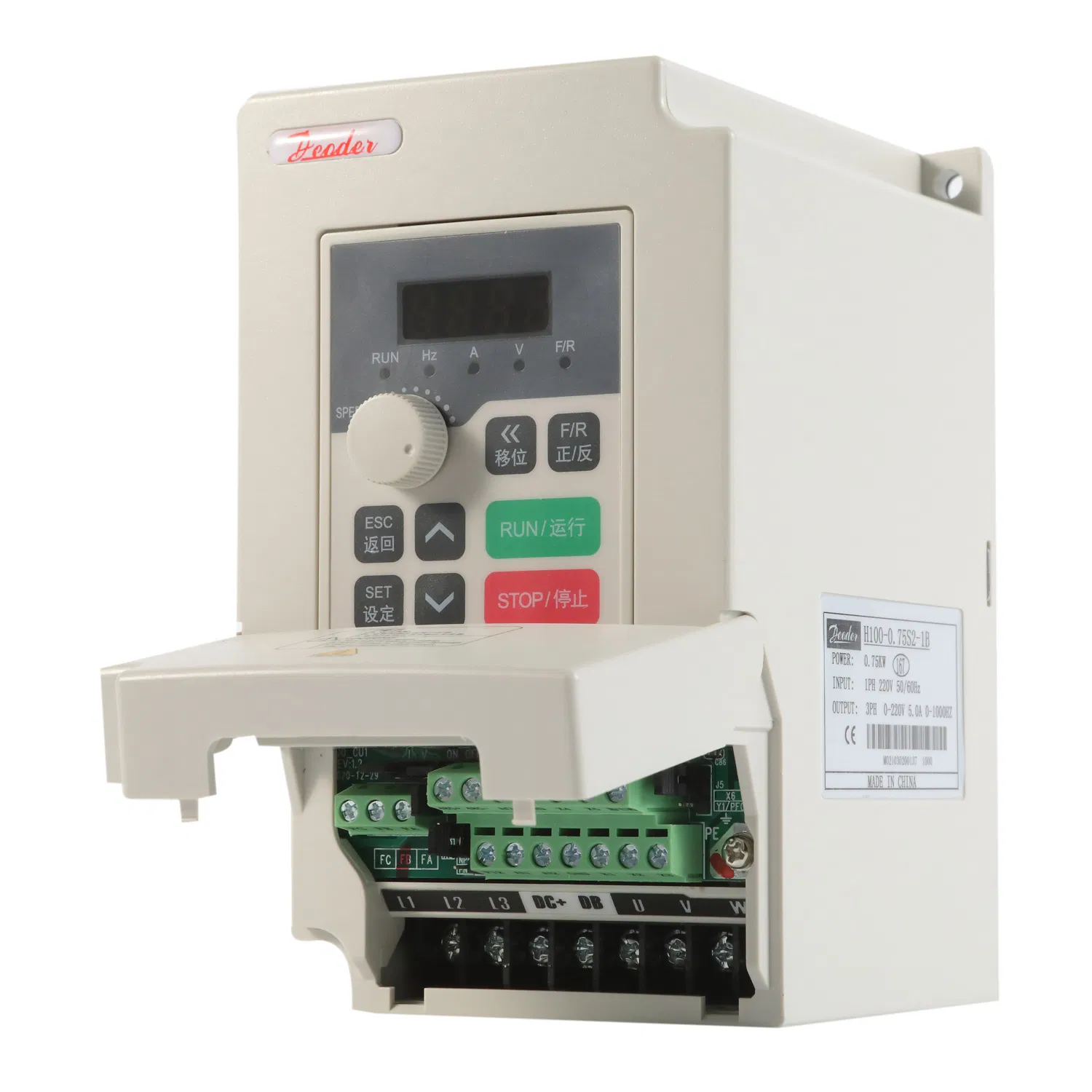

| Model | H100 Series Frequency Inverter |
| Power range | 3 phase AC 380V~480V (-10% ~ +10%) 0.75KW ~ 500KW |
| Output Frequency | 0.00~1000Hz (default: 50/60hz) |
| Control Mode | V/F Control, Sensorless Vector Control, Torque Control |
| Starting Torque | 0.5Hz/150%(SVC) |

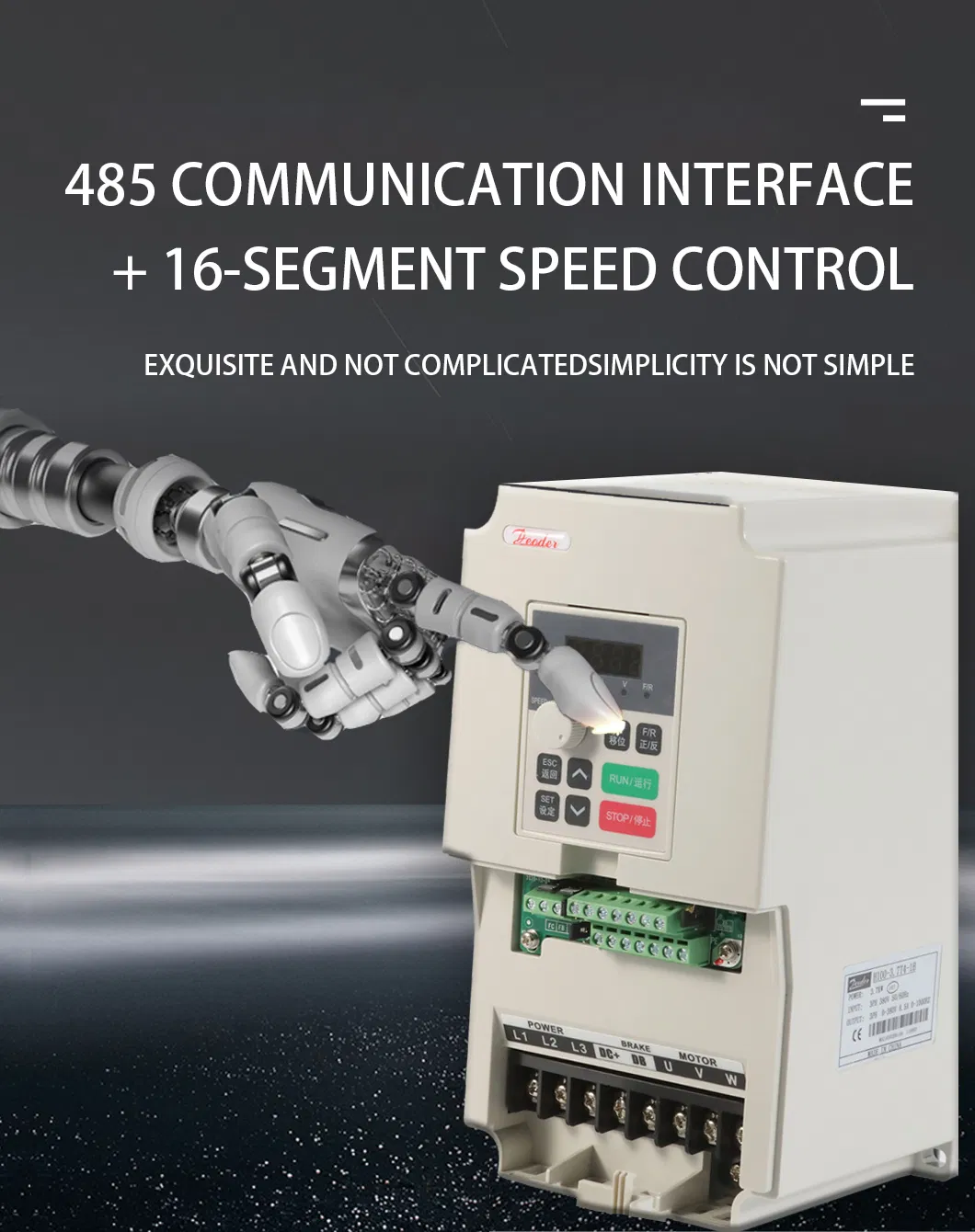

| Communication | RS-485, support MODBUS protocol |
| Energy saving | Power saving rate 30%-80% |
| PID | Built-in closed-loop control (e.g., Constant pressure water supply) |
| Fault Protection | Over current, over voltage, under voltage, over temperature, failure, over load etc. |
| Model | Power (kW) | Input Voltage | Output (A) | Dimension (H/W/D) |
|---|---|---|---|---|
| H100-0.4S2-1B | 0.4 | 220V 50HZ | 2.5/5.0 | 150 / 90 / 118 |

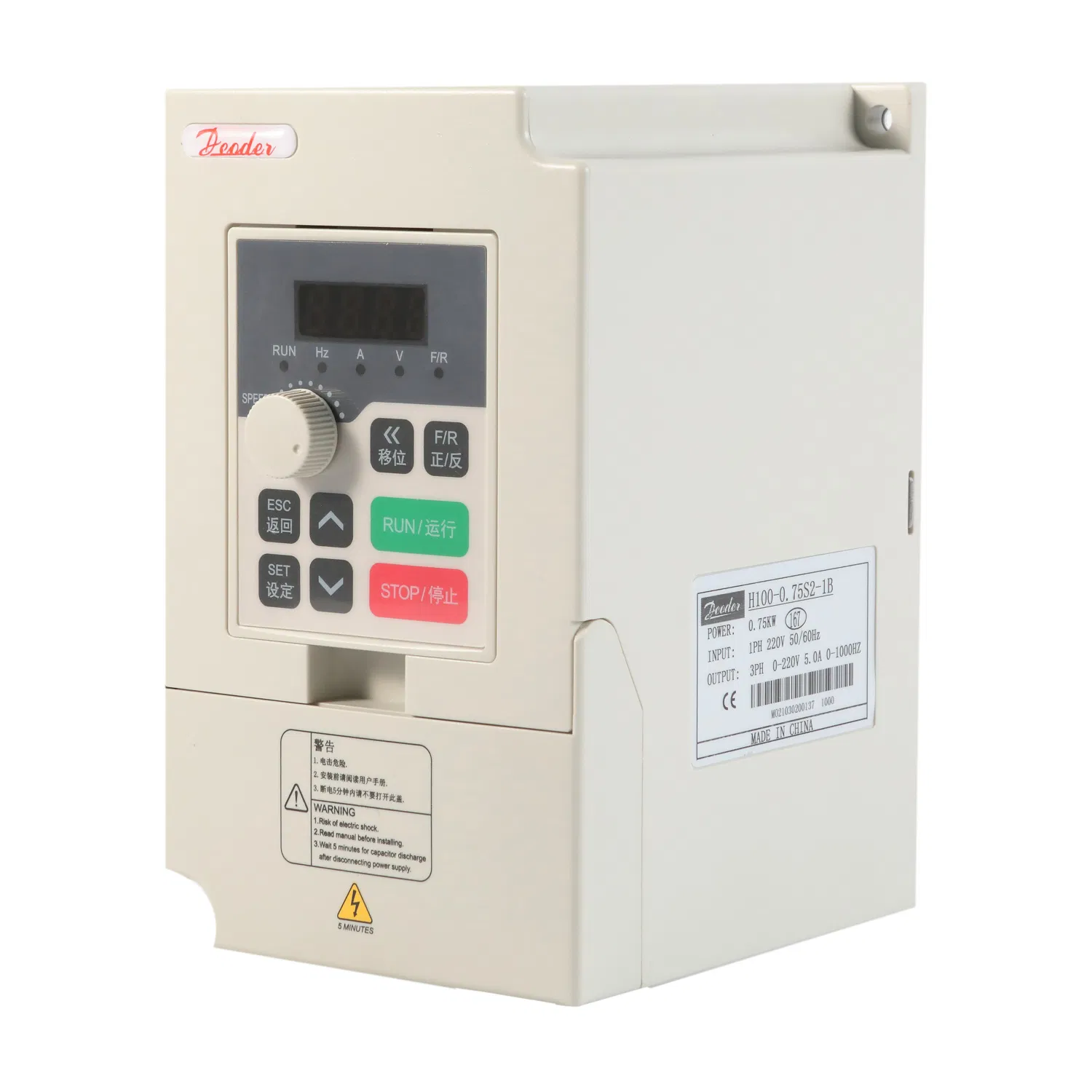

| H100-0.75S2-1B | 0.75 | 220V 50HZ | 5.0/7.0 | 150 / 90 / 118 |
| H100-1.5S2-1B | 1.5 | 220V 50HZ | 7.0/11 | 150 / 90 / 118 |
| H100-2.2S2-1B | 2.2 | 220V 50HZ | 11/17 | 220 / 118 / 148 |
| H100-0.75T4-1B | 0.75 | 380V 50Hz | 2.7/4.0 | 150 / 90 / 118 |
| H100-3.7T4-1B | 3.7 | 380V 50Hz | 8.5/12.5 | 220 / 118 / 148 |
♦ Variable frequency converter applicable occasions: Fans, Pumps, 3-Phase Motors, Machine Tool, Textile, Mining, Chemical, Plastic machinery, Metallurgy, Oil, Woodworking, Pharmaceutical, Ceramics, Paper, Lifting, Printing And Packaging, Air Compressors, Agricultural Irrigation, etc.
